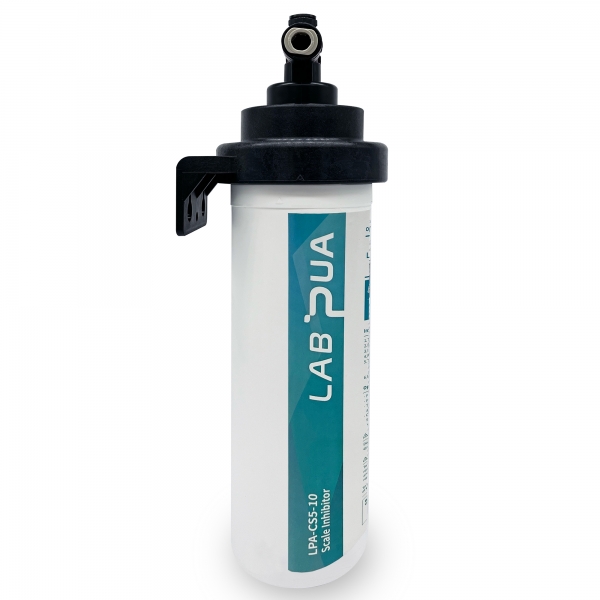

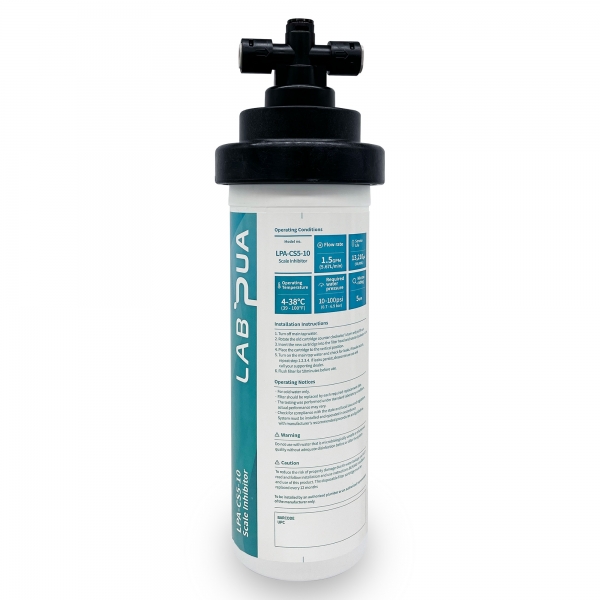

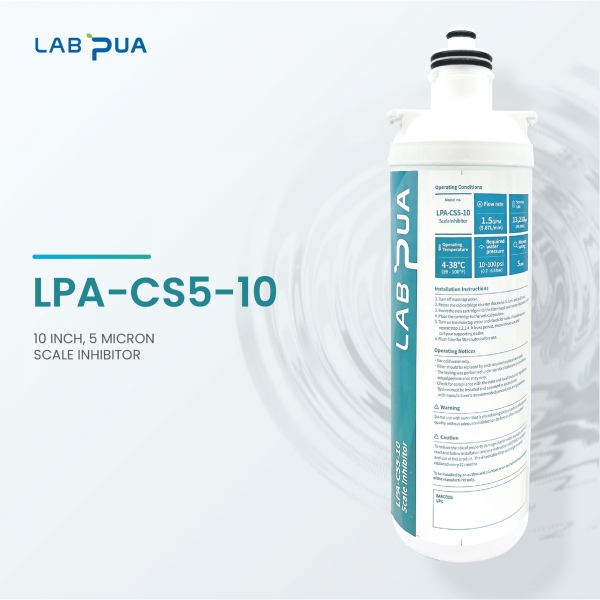

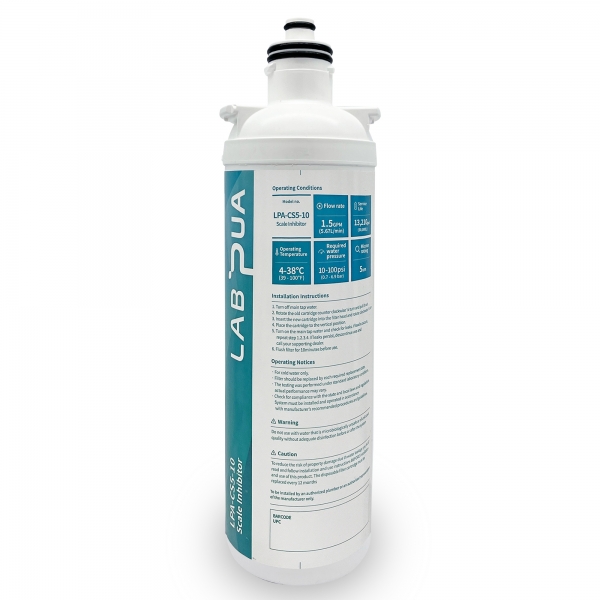

LPA CS5 10
Replaces Everpure 2CB5-K EV9617-06 / EV961706 Replacement Filter Cartridge

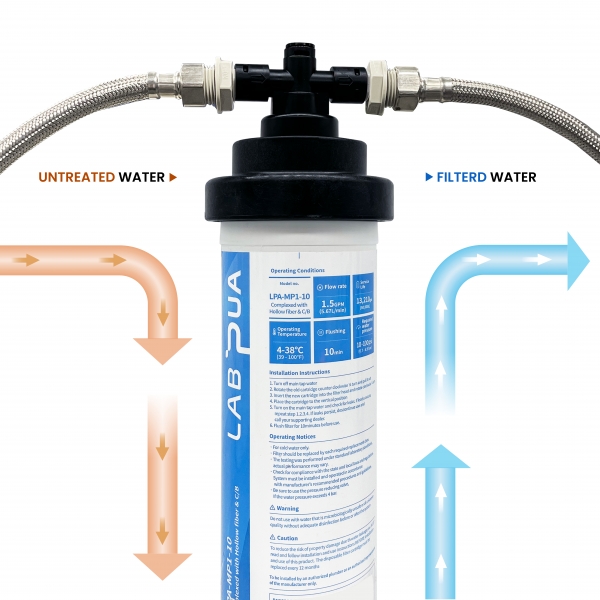

The Lab Pua LPA-CS5-10  Everpure EV9617-06 / EV961706 Filter Cartridge is intended for food service, vending machine and coffee service applications, and is ideal for problem water areas

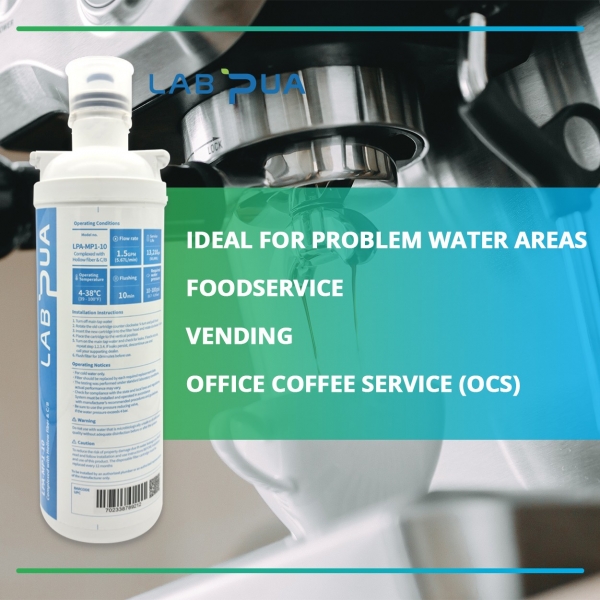

Applications
– Ideal for problem water areas
– Foodservice
– Vending
– Office coffee service (OCS)

Installation Tips
– Never use saddle valve for connection
– Use 3/8″ water line
– Install vertically with cartridge hanging down
– Allow 2-1/2″ (6.35 cm) clearance below the cartridge for easy cartridge replacement
– Flush The Lab Pua LPA-CS5-10  cartridge by running water through the filter for five (5) minutes at full flow

Operation Tips
– Change cartridges on a regular six (6) month preventative maintenance program
– Change cartridges when capacity is reached or when pressure falls below 10 psi (0.7 bar)
– Service flow rate must not exceed 1.0 gpm (5.4 Lpm)
– Always flush the filter cartridge at the time of installation and cartridge change

Sizing
Service Flow Rate: Maximum 1.0 gpm (5.4 Lpm)
Capacity: 50,000L

SPECIFICATIONS

• Service Flow Rate: 1.5 GPM (5.67 L/min)
• Rated Capacity: 13,210 Gallons (50,000 L)
• Operating Temperature: 4–38℃ (39–100℉)
• Pressure Requirements: 10–100 psi (0.7–6.9 bar)
• Inlet / Outlet Connection: 3/8″
• Electrical Connection: None required
• Dimensions:
  • Overall: 3.7″ × 12.5″
  • Cartridge: Ø3.3″ × 10.7″
• Weight: 1.1 kg
• Claims:
  • Reduces chlorine, taste, and odor
  • Removes particulates
  • Includes scale inhibitor to prevent mineral buildup

This all-in-one cartridge inhibits lime scale and reduces unwelcome elements in your water such

as sediment, chlorine, bad tastes and odours, as well as providing protection against cysts and
bacteria such as E-coli.

FEATURES · BENEFITS

• Phosphate can prevent to make scale in boiler or heater (phosphate)

• 5micron pore size CTO Block

• Extrusion carbon production method provides stable quality and

• Pre-shield Technology can prevent early clogging and keep the lifespan.

• Replacement method is easy quick-change.
