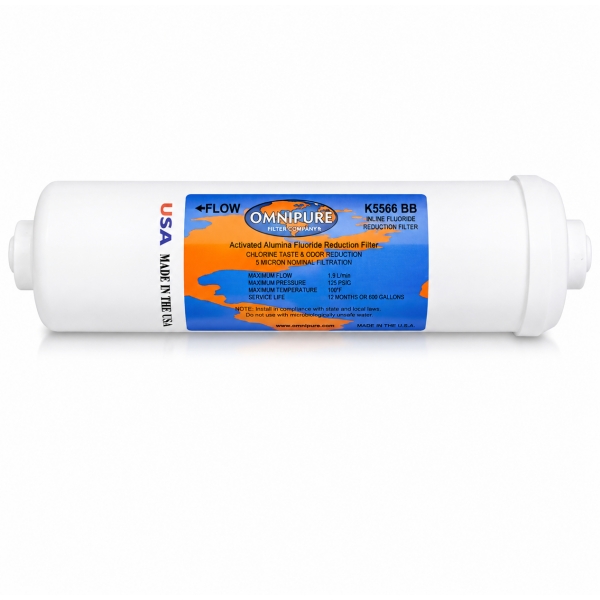

Omnipure K5566 Fluoride Removal Filter. Includes 2x AMC0404 push-in fittings (originally 1/4" screw fit)
The Original Genuine Omnipure K5566 Fluoride Reduction Inline Water Filter is manufactured in the USA and designed to reduce fluoride from drinking water using premium Activated Alumina filtration media.
The Omnipure K5566 is one of the most trusted inline fluoride filters available and is suitable for installation in under sink water filtration systems, reverse osmosis (RO) systems, refrigerator water filters, coffee machines, ice machines, drinking water systems, and commercial water filtration applications.
This genuine Omnipure USA filter can be installed before your existing water filter system to provide additional fluoride reduction while maintaining excellent water flow.
Each filter includes 2 x Genuine DMfit 1/4" Push-In BSP fittings, making installation quick and simple.
✔ 100% Genuine Original Omnipure Product
✔ Manufactured in the USA
✔ Premium Activated Alumina Fluoride Reduction Media
✔ Designed for Fluoride Reduction
✔ Easy Inline Installation
✔ Suitable for Residential & Commercial Applications
✔ Compatible with most 1/4" water filtration systems
✔ High Quality Polypropylene Housing
✔ Low Pressure Drop
✔ Excellent Water Flow
✔ Includes 2 x Genuine DMfit 1/4" Push-In Connectors
The Original Genuine Omnipure K5566 Fluoride Removal Water Filter is specifically designed to reduce fluoride from drinking water while delivering reliable performance and long service life.
Activated Alumina is one of the most widely recognised filtration media used for fluoride reduction and has been used successfully in drinking water treatment for many years.
The Omnipure K5566 can easily be added to almost any existing filtration system as an additional fluoride reduction stage.
Recommended applications include:
Under Sink Water Filters
Drinking Water Systems
Reverse Osmosis Systems
Refrigerator Water Filters
Fridge Water Filters
Coffee Machines
Ice Machines
Water Coolers
Beverage Equipment
Commercial Water Filtration Systems
| Specification | Details |
|---|---|
| Brand | Omnipure USA |
| Model | K5566 |
| Filter Type | Fluoride Reduction Inline Water Filter |
| Media | Activated Alumina |
| Country of Manufacture | Made in USA |
| Connection | 1/4" Female BSP Thread |
| Included Fittings | 2 x Genuine DMfit 1/4" Push-In BSP Connectors |
| Dimensions | 260mm x 62mm (10" x 2.5") |
| Maximum Flow Rate | 1.9 L/min (0.5 GPM) |
| Maximum Pressure | 125 PSI (8.6 Bar) |
| Operating Temperature | 2°C – 38°C |
| Service Life | Up to 12 Months |
| Capacity | Approx. 600 Gallons (2,270 Litres)* |
*Actual filter life depends on local water quality, fluoride concentration, pH, water hardness and daily water consumption.
The Omnipure K5566 uses premium Activated Alumina media specifically selected for fluoride reduction.
When installed correctly and operated within the manufacturer's specifications, the filter is capable of providing excellent fluoride reduction performance.
Actual fluoride reduction depends on:
Incoming fluoride concentration
Water chemistry
Water hardness
Water pH
Flow rate
Total water usage
Remaining filter capacity
For optimum performance, replace the cartridge every 12 months or when the rated capacity has been reached.
For best performance, we recommend the following installation order:
Water Supply
↓
Sediment Filter (Recommended)
↓
Original Genuine Omnipure K5566 Fluoride Reduction Filter
↓
Carbon Block Water Filter
↓
Drinking Water Tap
Installing a carbon filter after the K5566 helps improve taste and may capture any fine filtration particles produced during initial use.
The K5566 may also be installed before:
Existing Under Sink Filters
Reverse Osmosis Systems
Refrigerator Water Filters
Fridge Water Filters
Coffee Machines
Ice Makers
Beverage Equipment
Always install following the flow direction indicated on the filter body.
Flush the filter with approximately 20 litres (5 gallons) of clean water before first use.
1 x Genuine Original Omnipure K5566 Fluoride Reduction Inline Water Filter
2 x Genuine DMfit 1/4" BSP Push-In Connectors
Included with every filter are 2 x Genuine DMfit 1/4" BSP Push-In Connectors.
DMfit fittings are manufactured from high-quality acetal copolymer, one of the strongest engineering thermoplastics available.
Durable engineering-grade material
Excellent dimensional stability
High burst pressure rating
Long service life
Quick Push-In installation
Manufactured using FDA-approved materials
NSF-51 Certified
NSF-61 Certified
Suitable for:
Under Sink Water Filters
Drinking Water Systems
Reverse Osmosis Systems
Refrigerator Water Filters
Fridge Water Filters
Coffee Machines
Espresso Machines
Ice Machines
Water Coolers
Commercial Beverage Equipment
Home Water Filtration Systems
Genuine Original Omnipure USA Product
Manufactured in USA
Components Tested to NSF Standards for applicable claims
DMfit fittings certified to NSF-51 & NSF-61
FDA Approved Materials
Read the Performance Data Sheet before installation.
Water quality varies between locations and may affect filter life and performance.
Replace the filter after approximately 12 months or when the rated capacity has been reached.
Do not use with microbiologically unsafe water or water of unknown quality without adequate disinfection before or after the system.
Always flush the filter before first use.
Install in accordance with all applicable local plumbing regulations.
The Genuine Original Omnipure K5566 is covered by Omnipure's manufacturer's warranty against defects in materials and workmanship when installed and operated within the published specifications. For full warranty details, please refer to the official Omnipure documentation.
