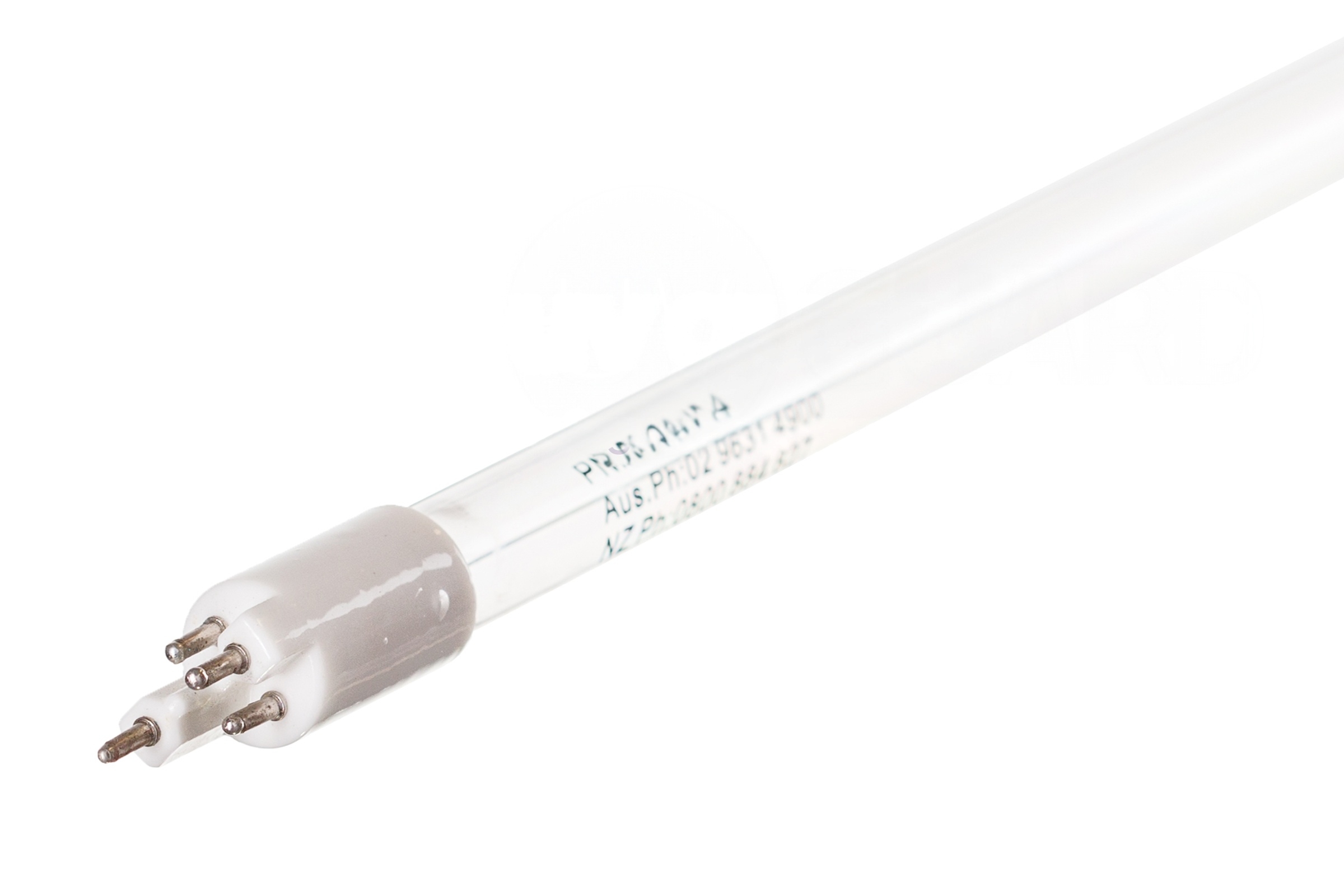

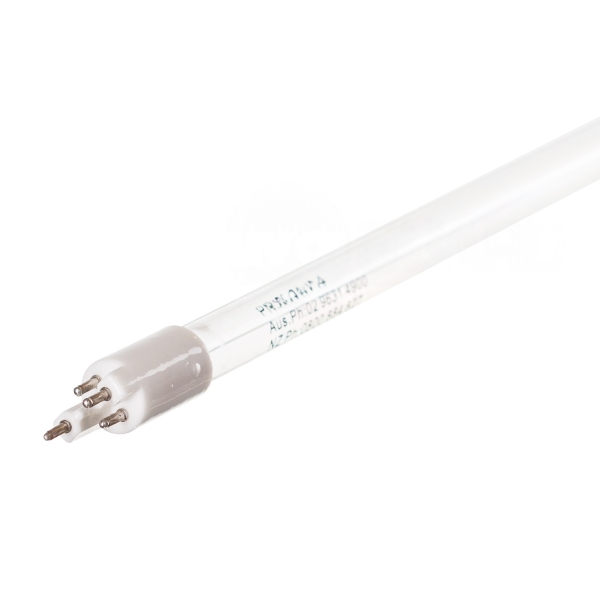

UV Lamp 11045 - UV GUARD 825mm x 18.5mm - 38 watt 4 pins

The UV Lamp 11045 (S810RL) by UV GUARD is a 38W replacement UV light lamp featuring a stepped 4-pin configuration. Measuring 825mm in total length (inclusive of pins) with an 18.5mm diameter, this lamp is engineered to suit various disinfection setups, including Viqua Sterilight S8Q Silver Series models, Raindance, Hydrosafe, and related systems. It serves as a direct cross-reference for part numbers S810RL, GPH810T5L, and CB-098. Provided by Water Filter Distributors for reliable maintenance support.

Product Specifications

• SKU: 11045 UV lamp (S810RL)

• Brand: Sterilight / UV Guard

• Wattage: 38W Operating (46W System Nominal)

• Dimensions: 825mm (including pins) x 18.5mm

• Pin Configuration: 4 pin stepped

• Pressure Category: Low

• Wattage Categories: Less than 100 watts

• Length Categories: 500 mm – 1000 mm

• Alternate Part Numbers:

  • S810RL

  • GPH810T5L

  • CB-098

• Compatible Systems:

  • Raindance, R Can, Cuno, Sterilight, Hydrosafe

  • Viqua QPA2A

  • Viqua Sterilight S8Q Silver Series UV Sterilisers (including S8Q-Gold, S8Q-Gold/2, S8Q)

  • S80, SSM-37, SSM-37/2, S8Q-PA, S8Q-PA/2, SV8Q-PA
