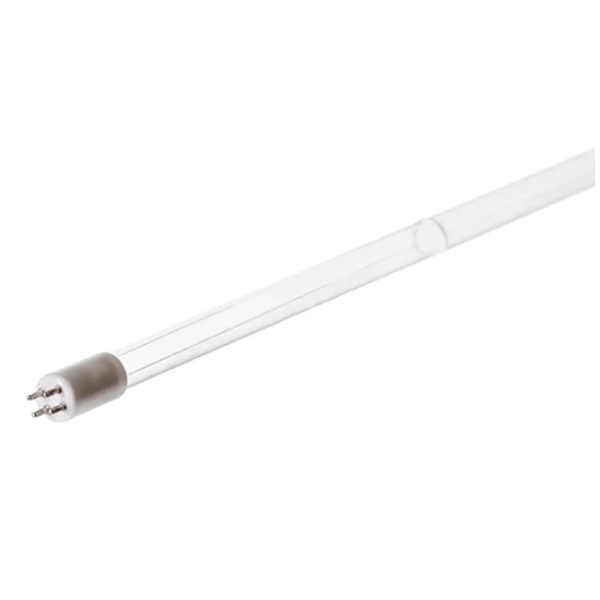

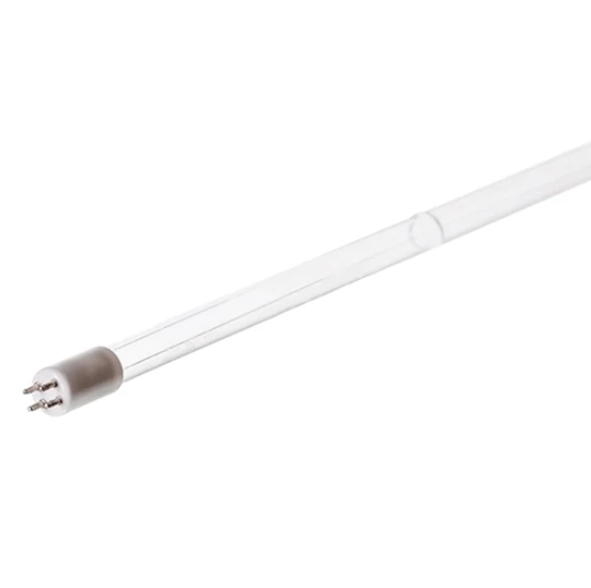

UV Lamp 11020 - UV GUARD 260mm x 18mm - 12 watt 4 pins

UV Lamp 11020 - UV GUARD 260mm x 18mm - 12 watt 4 pins

Description The UV Lamp 11020 by UV GUARD is a compact UV replacement lamp engineered for water treatment systems, including UVG SLT12 setups. Featuring a 4-pin single-ended configuration, this low-pressure lamp has an overall length of 260mm (including pins) with an 18mm outer cap diameter. Operating at a standard 12W output (dependent on ballast capability), it serves as a direct cross-reference for GPH250T5L and L-GXO300L part numbers. Supplied by Water Filter Distributors for reliable maintenance support.

Product Specifications

• SKU / Model: UV Lamp 11020

• Brand: UV Guard

• Wattage: 12W (Nominal: 20W / Actual output depends on ballast capability)

• Dimensions: 260mm (including pins) x 18mm

• Quartz Outer Diameter: 15mm

• Pin Configuration: 4 Pin Single Ended

• Pressure Category: Low

• Length Category: Less than 500 mm

• Compatible Ballast: 40012-RB

• Cross-Reference & System Compatibility:

  • UVG SLT12 Systems

  • GPH250T5L / GPH250T5L/4

  • L-GXO300L

  • ADVANCE UV LL020-S4
