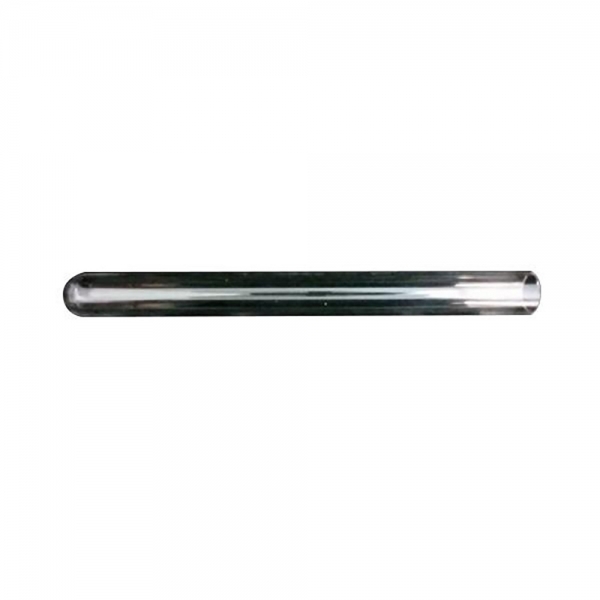

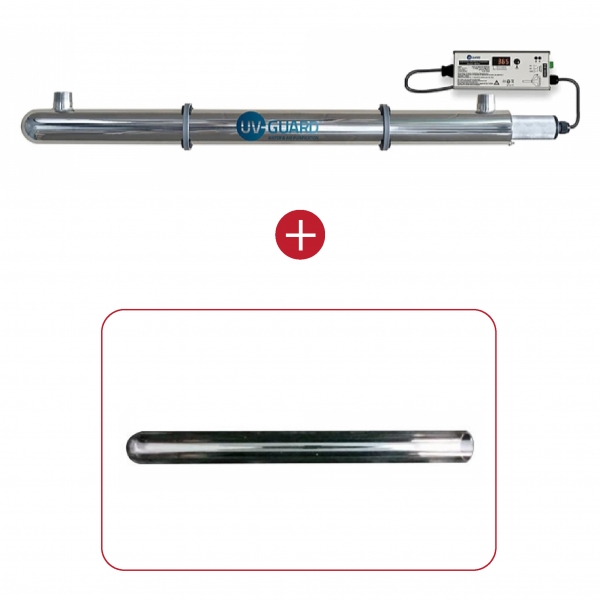

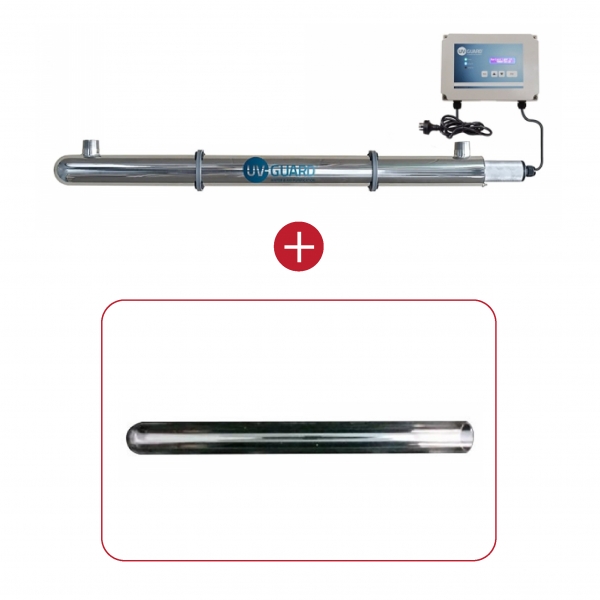

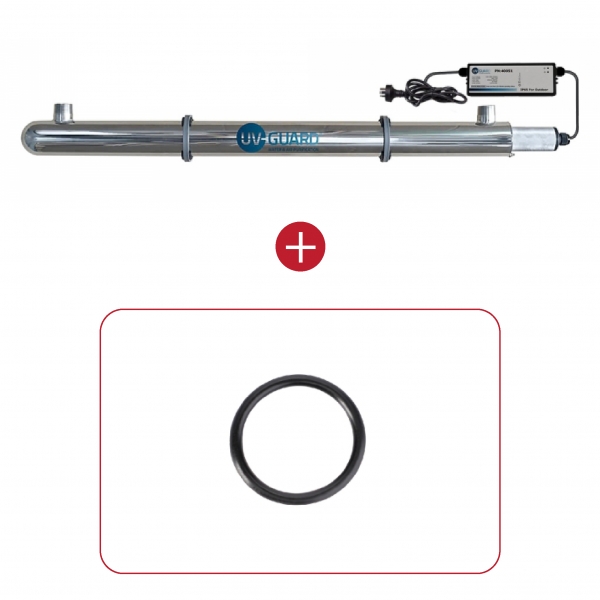

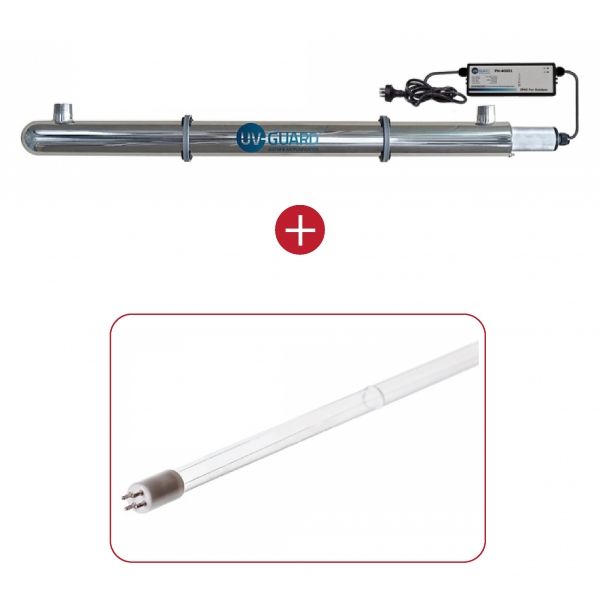

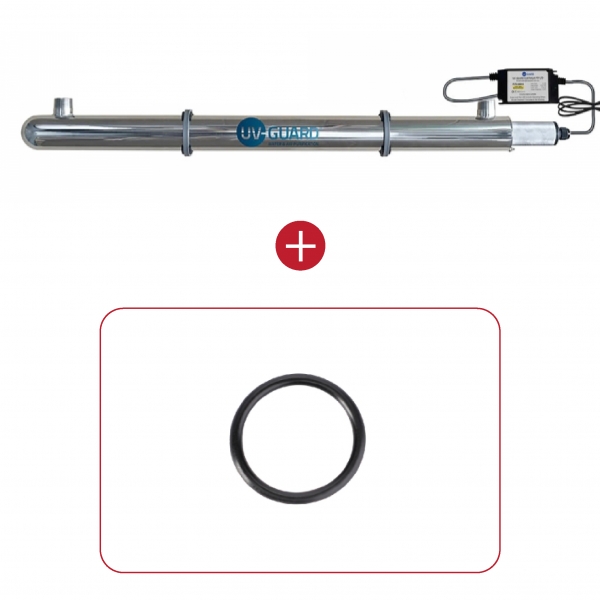

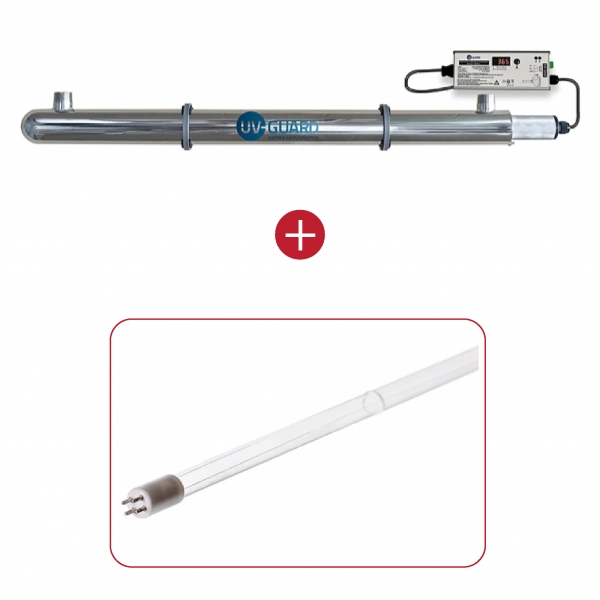

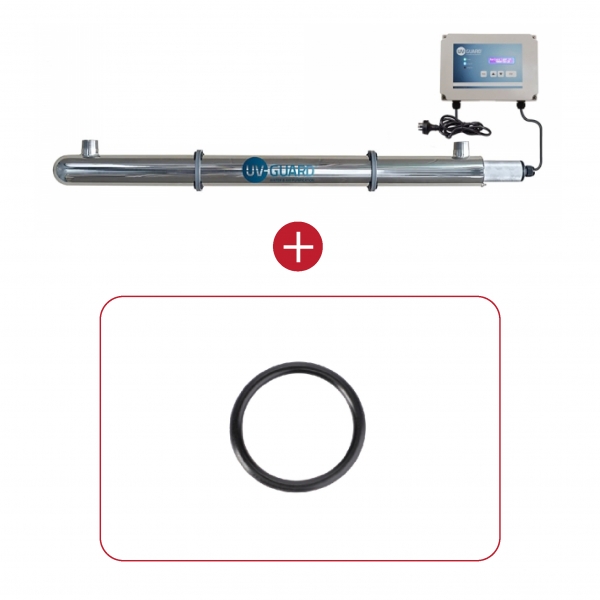

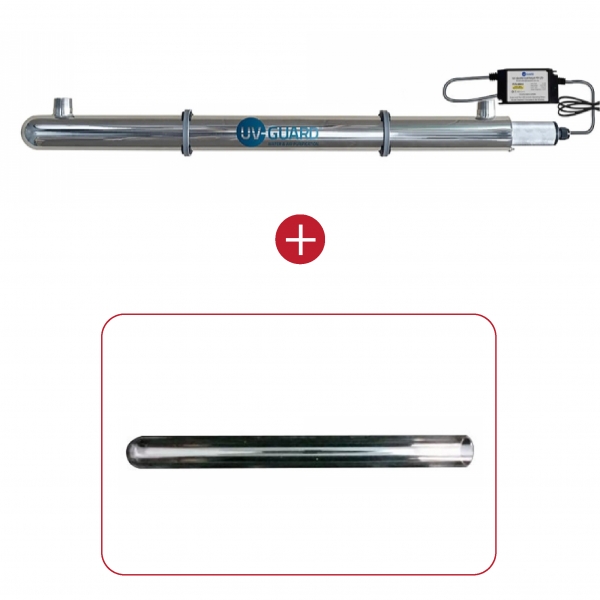

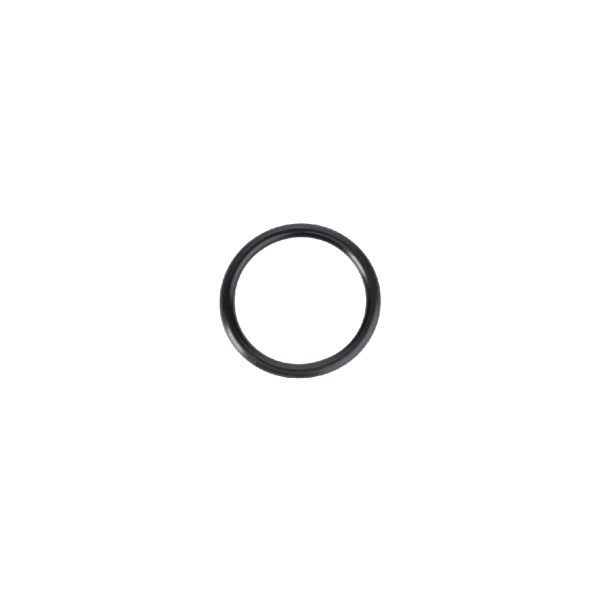

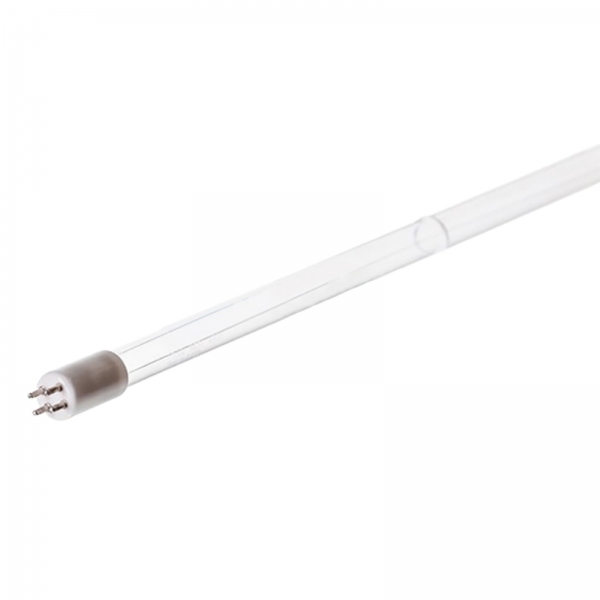

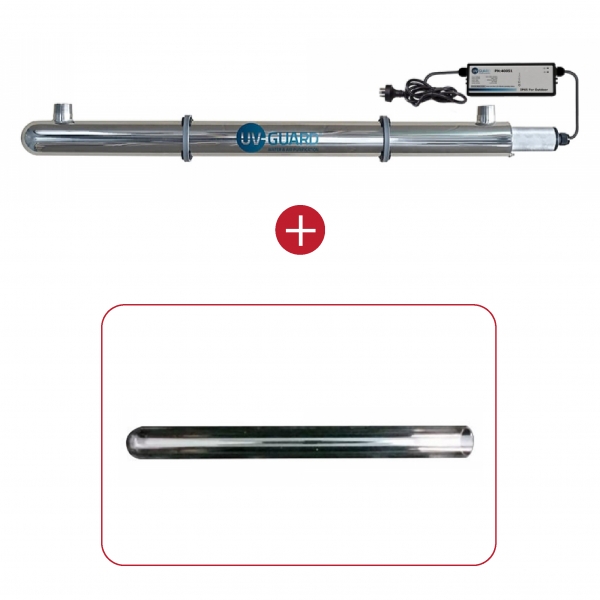

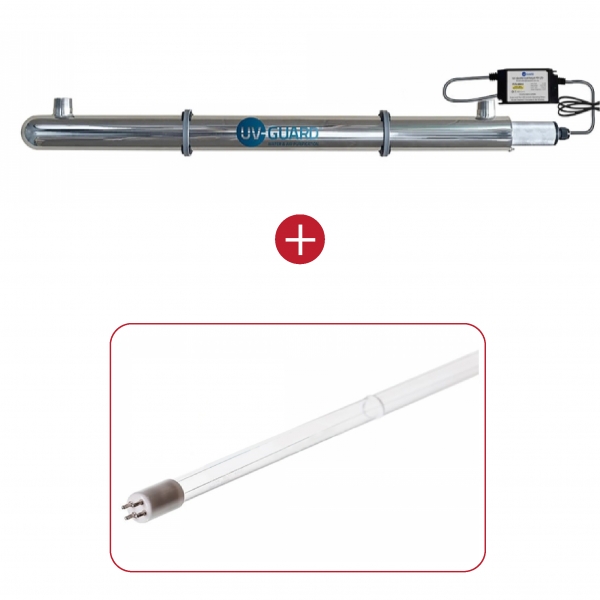

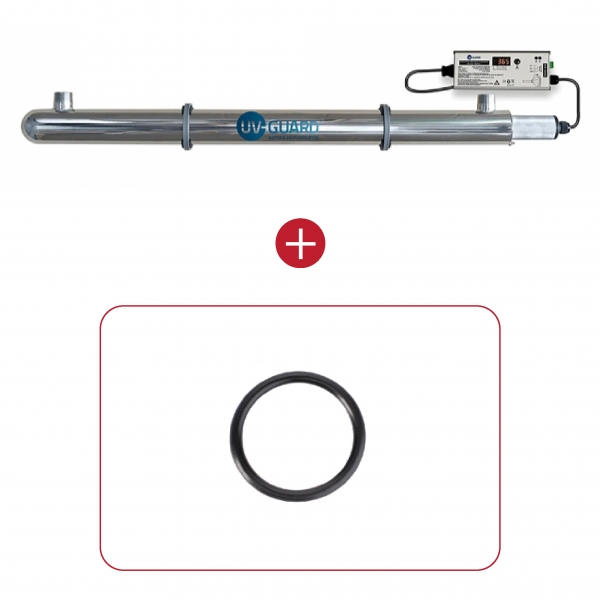

UVG SLT40, UV system (medium house, 46 lpm) with 316 grade stainless steel reactor, 1” male BSP inlet and outlet connections in a “U” formation, 40W UV lamp, quartz, o-ring and heavy duty poly mounting brackets.
The SLT-Series is a cost effective and high performing UV water disinfection system. With 8 models in the range and options to allow indoor and outdoor installation, the SLT-Series is ideal for under sink, whole of house, swimming pool and pond clarification uses.
• 316 grade stainless steel UV reactor (304 for SLT1 and SLT2 models).
• Available in BSP inlet and outlet connections is U configuration.
• Low pressure, low pressure high output or low pressure amalgam UV lamps.

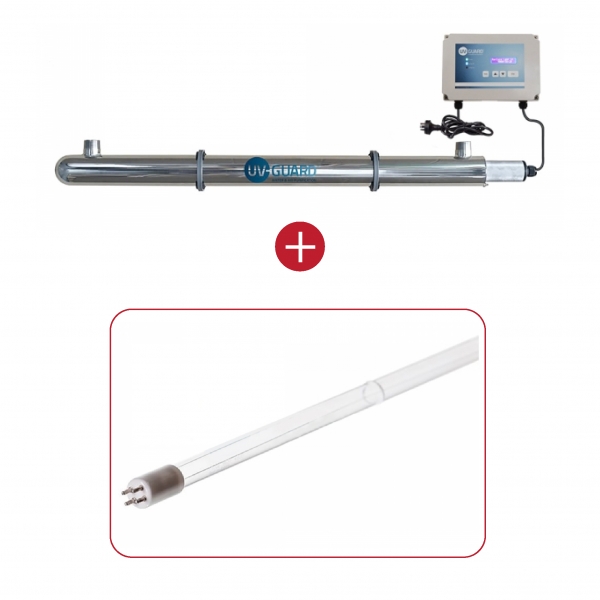

• Variety of indoor and weatherproof controllers available.
• Customisable features including lamp safety interlocking device, remote on/off, SMS fault module, reactor temperature safety system, Modbus module, fault volt free contacts, personalised software.
Residential |
UVG SLT40 UV Disinfection For 1 Bathroom Whole House UV Disinfection SystemIncluding Outdoor IP65Power Supply
MAXIMUM FLOW RATE
• Potable Water – 26 litres per minute
• Non-potable Water – 34 litres per minute
UV disinfection is a technology that uses Ultra-Violet light in the germicidal wavelength range between 200 and 300 nanometers. The optimum UV wavelength for UV disinfection is 264 nanometers which is located within the UV-C spectrum.
When microorganisms are exposed to germicidal wavelengths, they are destroyed outright or rendered incapable of reproducing. The high energy associated with UV-C UV light is absorbed by the DNA of bacteria, viruses, spores and other pathogens. This absorption causes abnormalities within the DNA to occur, resulting in the microorganism being incapable of reproducing and infecting.
A certain UV dose will provide a 99.9% reduction in bacteria.
MAXIMUM FLOW RATE – 26 l/min @ 40mJ/cm2 FOR
• Town water supplies with 80% UVT (Ultraviolet Transmittance)
• Rainwater tank supplies with 90% filtered water UVT (Ultraviolet Transmittance)
MAXIMUM FLOW RATE – 34 l/min @ 30mJ/cm2 FOR
• Pond, irrigation and non-potable water treatment
• 316SS UV reactor with heavy duty poly mounting brackets
• Connections: 3/4” BSP male threads
• Dimensions: 99cm’s x 6.3cm’s
• IP65 Weatherproof controller
• Warranty: 1 year
• WaterMark Certified
• UV LAMP REPLACEMENT FREQUENCY
UV Lamps should be replaced every 12 months.
