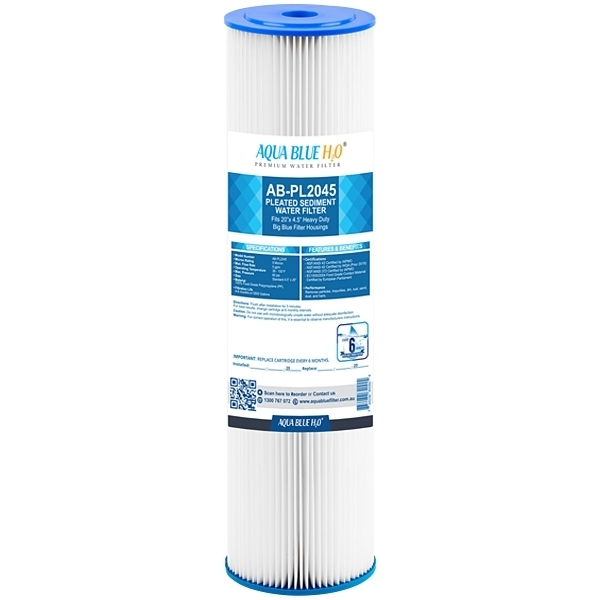

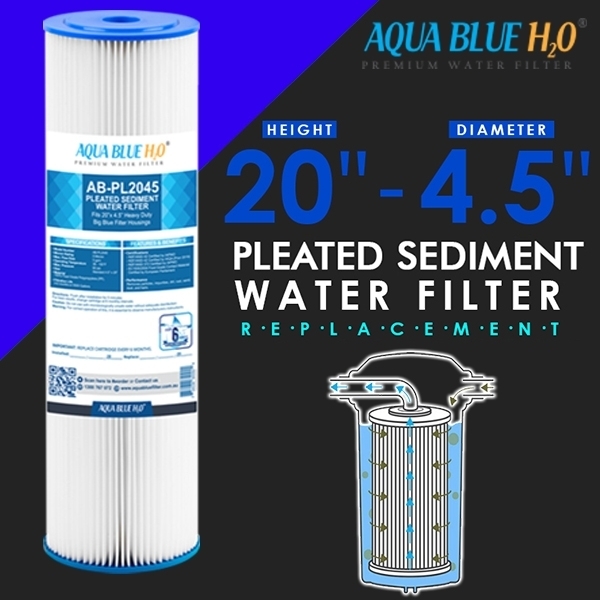

Protect your whole house water filtration system with the AQUA BLUE H₂O ABPL2045-5M Pleated Sediment Water Filter. Designed for standard 20" x 4.5" Big Blue filter housings, this premium washable cartridge effectively removes dirt, sand, rust, silt and suspended sediment while maintaining excellent water flow.
The pleated polyester media provides a significantly larger filtration surface than standard spun cartridges, allowing for greater dirt holding capacity, lower pressure drop and a longer service life. It is washable and reusable, making it an economical choice for residential, commercial and rural water filtration systems.
✔ Premium Pleated Polyester Filter Media
✔ 5 Micron Sediment Filtration
✔ Washable & Reusable Design
✔ High Dirt Holding Capacity
✔ Excellent Water Flow
✔ Low Pressure Drop
✔ Fits Standard 20" x 4.5" Big Blue Housings
✔ Ideal for Town Water, Rainwater & Bore Water
Designed to reduce physical particles only. This cartridge does not remove dissolved chemicals or bacteria.

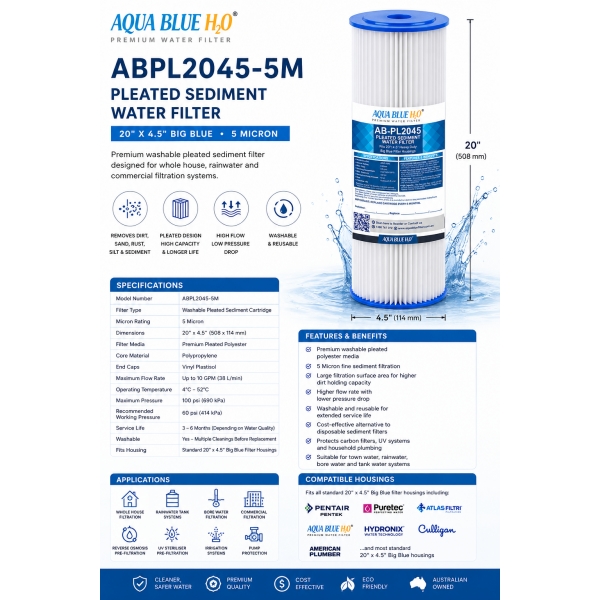

| Model | ABPL2045-5M |
|---|---|
| Filter Type | Pleated Sediment Cartridge |
| Filter Media | Premium Pleated Polyester |
| Micron Rating | 5 Micron |

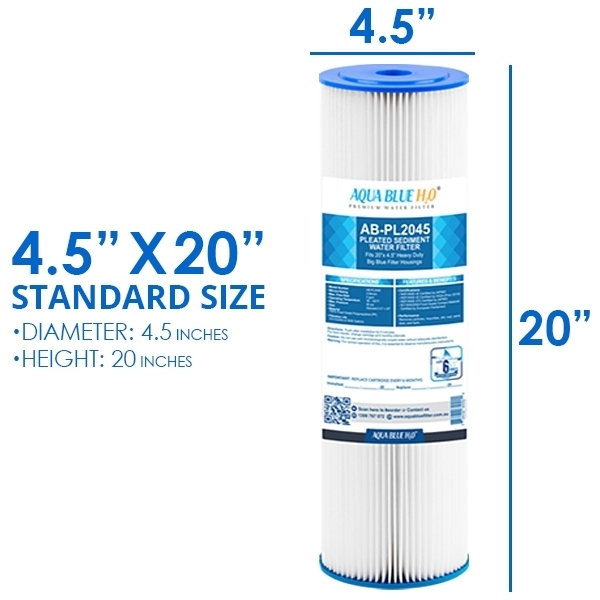

| Dimensions | 20" x 4.5" (508 x 114 mm) |
| Maximum Flow Rate | Up to 10 GPM (38 L/min) |
| Operating Temperature | 4°C – 52°C |
| Maximum Pressure | 100 psi (690 kPa) |
| Recommended Working Pressure | 60 psi (414 kPa) |
| Service Life | 3–6 Months* |
| Washable | Yes |
| Housing Size | Standard 20" x 4.5" Big Blue |
*Replacement interval depends on incoming water quality and usage.

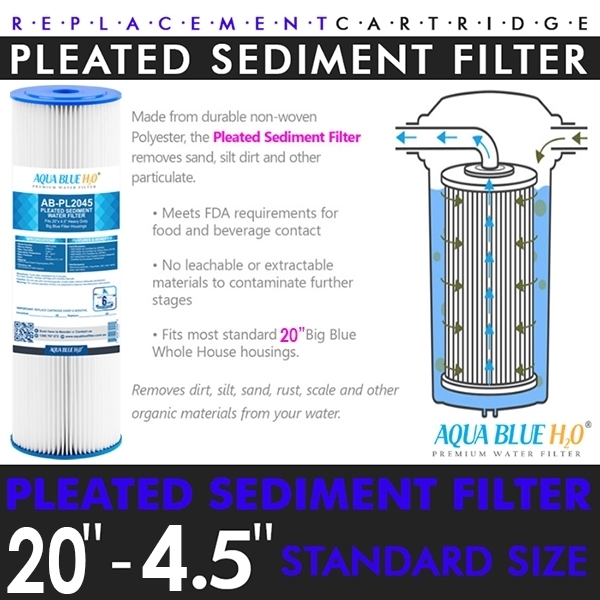

The pleated design offers significantly more filtration area than conventional sediment cartridges, increasing contaminant holding capacity.
Maintains strong water pressure while reducing pressure loss throughout your filtration system.
Simply rinse the cartridge when dirty to extend its usable life before replacement.
Acts as an effective pre-filter to help protect:
Fits most standard 20" x 4.5" Big Blue filter housings, including:
