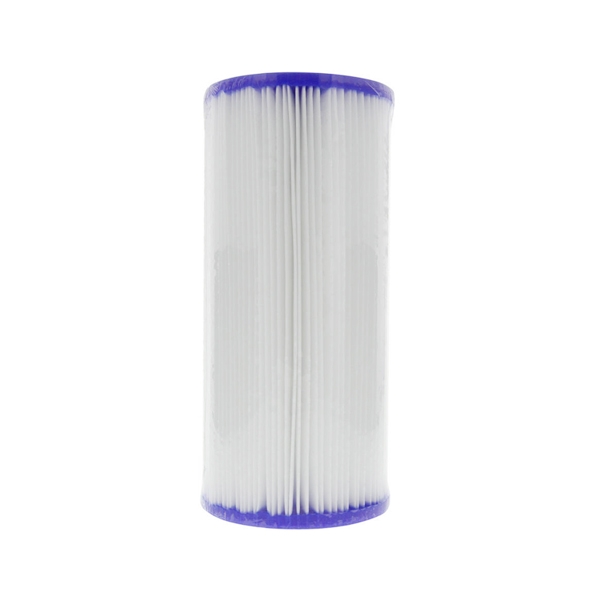

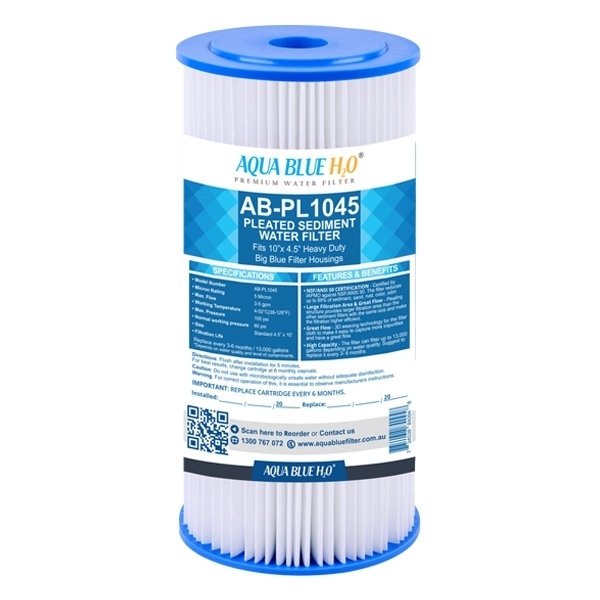

The AQUA BLUE H₂O ABPL1045-30M is a premium pleated polyester sediment filter cartridge designed for standard 10" x 4.5" Big Blue filter housings.
Manufactured from durable non-woven polyester media, this cartridge is washable, reusable and suitable for a wide range of residential, commercial and industrial filtration applications. The pleated design provides excellent dirt-holding capacity while maintaining strong water flow and low pressure drop.
✔ 30 Micron nominal sediment filtration
✔ Washable and reusable design
✔ Pleated polyester media for higher dirt holding capacity
✔ Durable media resistant to bacteria and chemical attack
✔ Strong polypropylene core for added strength
✔ Suitable for residential, commercial and industrial use
✔ Fits standard 10" x 4.5" Big Blue filter housings
| Specification | Details |
|---|---|
| Brand | AQUA BLUE H₂O |
| Model Number | ABPL1045-30M |
| Filter Type | Pleated Polyester Sediment Cartridge |
| Micron Rating | 30 Micron Nominal |
| Advertised Size | 10" x 4.5" |
| Actual Size | 9 3/4" length x 4 1/2" outside diameter |
| Actual Size (cm) | 24.77 cm x 11.43 cm |
| Filter Media | Non-Woven Pleated Polyester |
| Core Material | Polypropylene |
| End Caps | Vinyl Plastisol |
| Filter Life | Up to 6 months* |
| Operating Temperature | 4.4°C – 51.7°C |
| Operating Temperature | 40°F – 125°F |
| Flow Rate | 10 GPM |
| Flow Rate | 37.85 L/min |
| Reusable | Yes |
| Housing Compatibility | Standard 10" x 4.5" Big Blue Housings |
*Filter life depends on incoming water quality and usage.
This cartridge is designed for sediment reduction only. It does not remove chlorine, taste, odour, dissolved chemicals or bacteria.

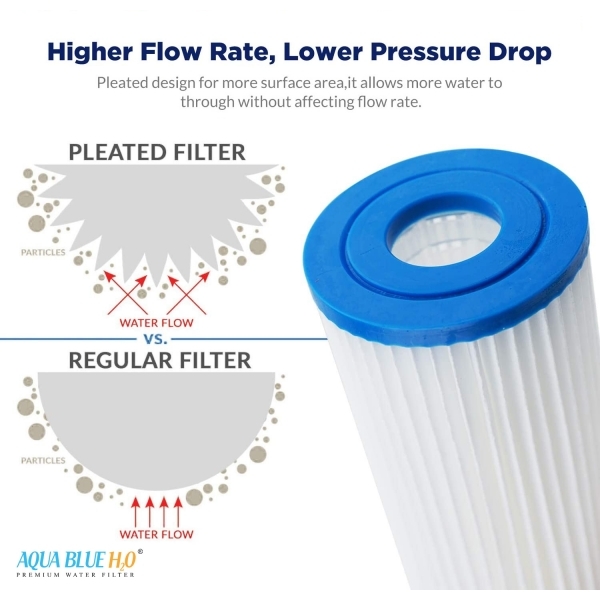

The pleated polyester design provides a large filtration surface area, helping capture more sediment and extending the time between cleaning or replacement.
The cartridge can be rinsed and reused multiple times, making it a practical and cost-effective option for high-sediment water supplies.

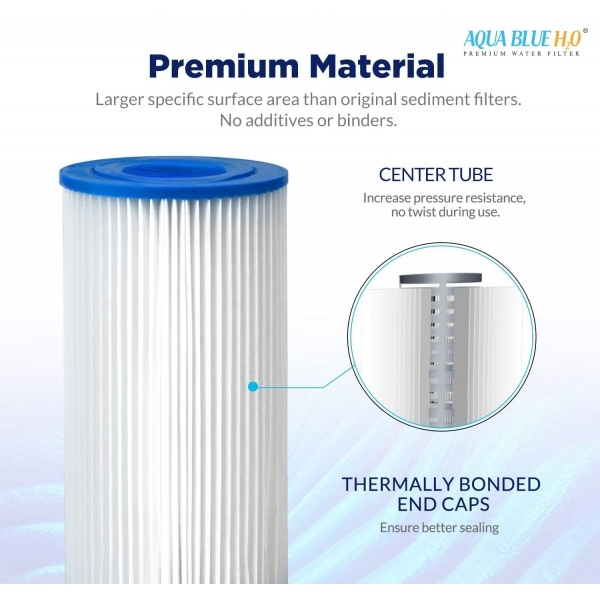

Built with non-woven polyester media, polypropylene core and vinyl plastisol end caps for reliable filtration performance.
Designed to maintain high water flow with low pressure drop, making it ideal for whole house and commercial applications.

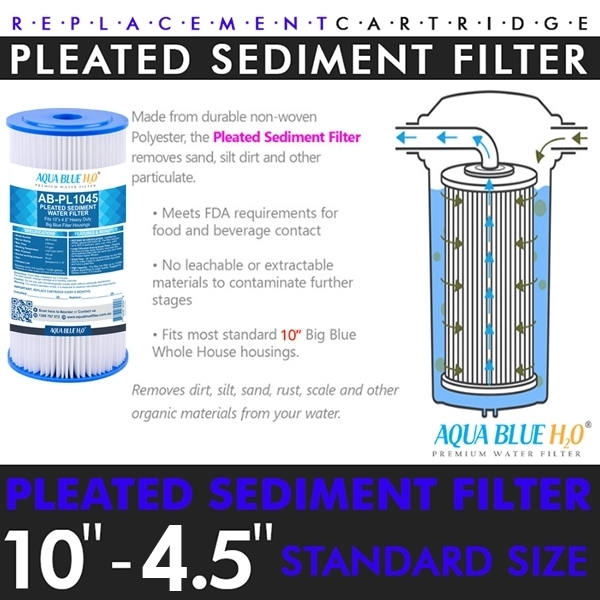

Fits most standard 10" x 4.5" Big Blue filter housings, including:
