Everpure 2CB5-S EV9617-22 Scale Control 5 Micron replace by Labpua

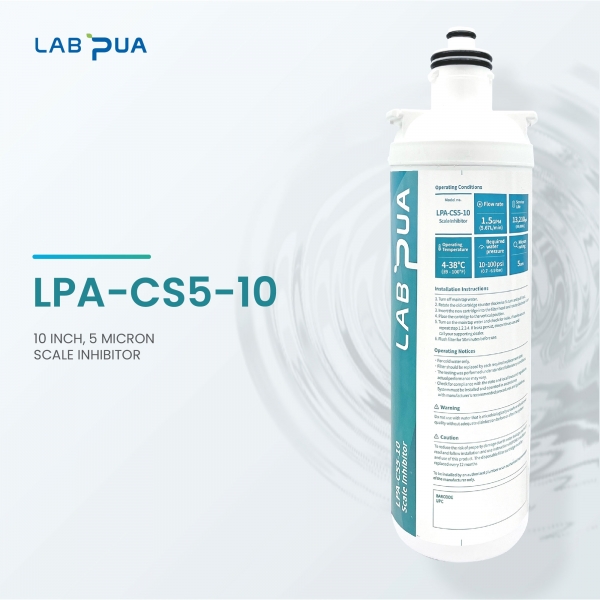

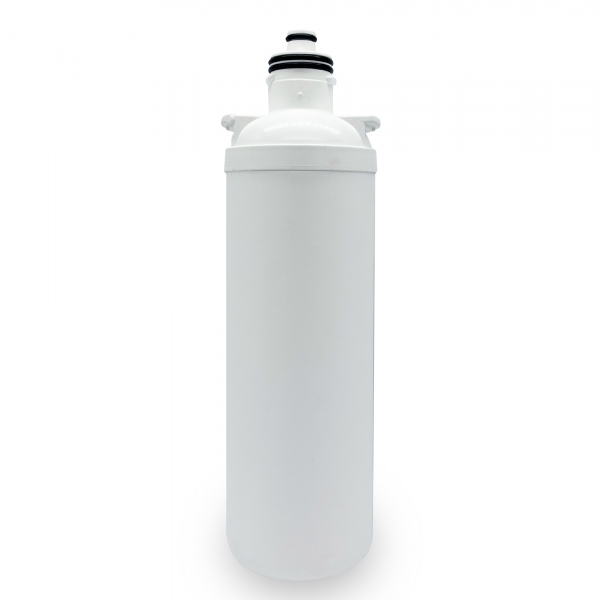

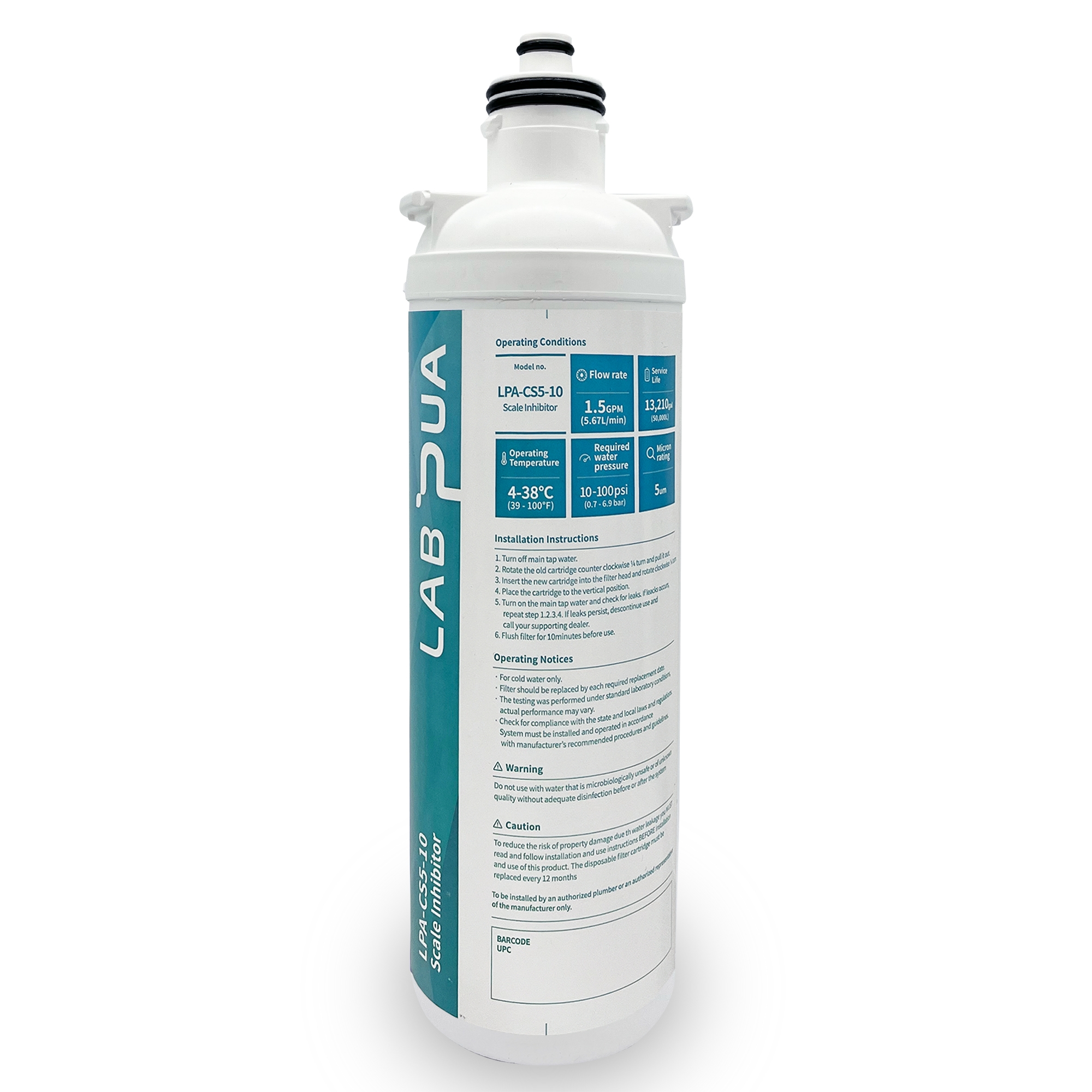

Lab Pua LPA-CS5-10 Replacement Water Filter Cartridge

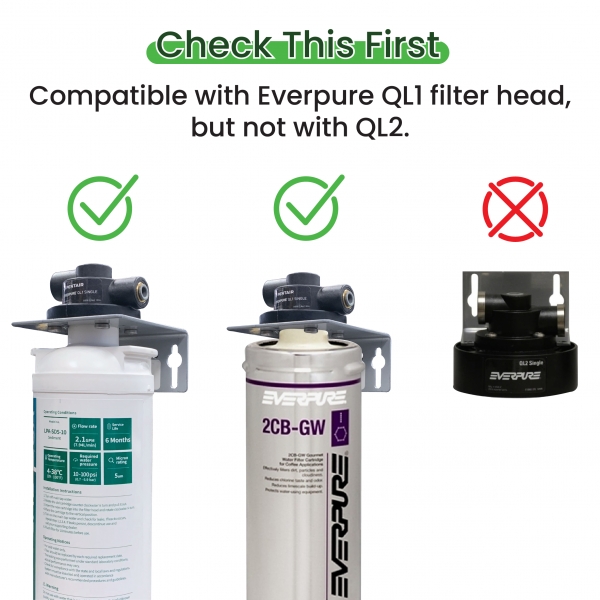

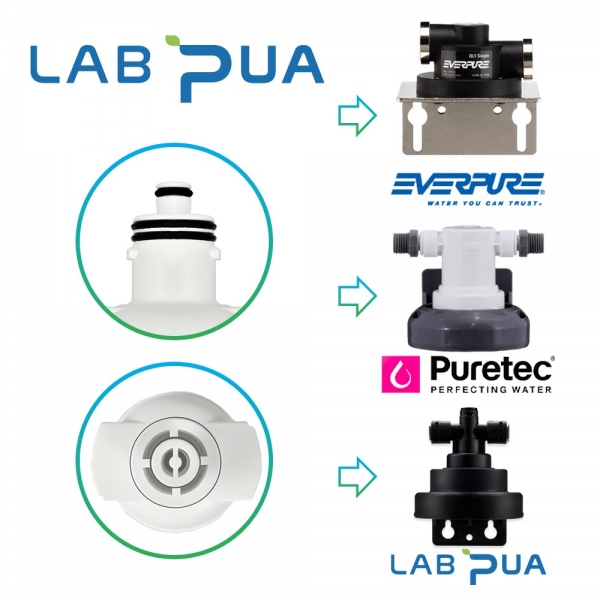

The Lab Pua LPA-CS5-10 is a high-capacity replacement water filter cartridge designed for food service, vending machines, office coffee service, and problem water areas. It is suitable as a replacement option for Everpure 2CB5-K EV9617-06 / EV961706 filter cartridges.

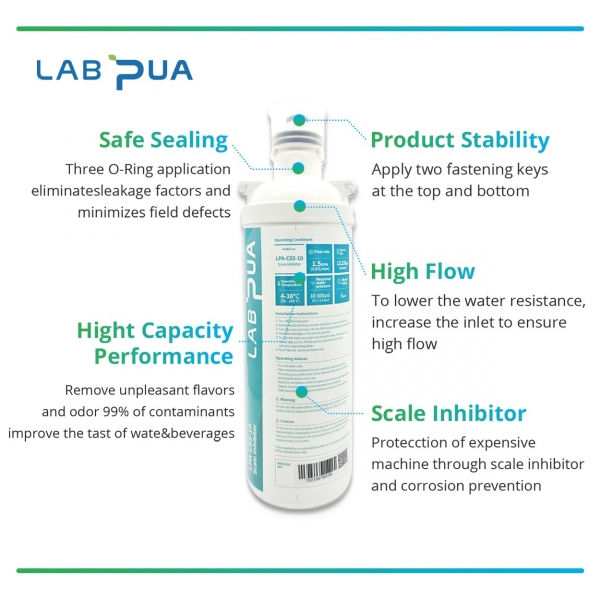

This all-in-one cartridge helps reduce sediment, chlorine, unpleasant taste and odour while also assisting with scale control. Its 5 micron CTO carbon block and scale inhibitor make it ideal for coffee machines, vending applications, hospitality use, and commercial drinking water systems.

Key Features

• High-capacity filtration – rated up to 50,000 litres
• Helps reduce chlorine, taste, odour and particulates
• Includes scale inhibitor to help protect boilers, heaters and appliances
• 5 micron CTO carbon block filtration
• Quick-change cartridge design for easy replacement
• No electrical connection required
• Suitable for food service, vending and office coffee applications

Applications

• Food service equipment
• Coffee machines
• Vending machines
• Office coffee service
• Hospitality and commercial water filtration
• Problem water areas where taste, odour, sediment or scale may be an issue

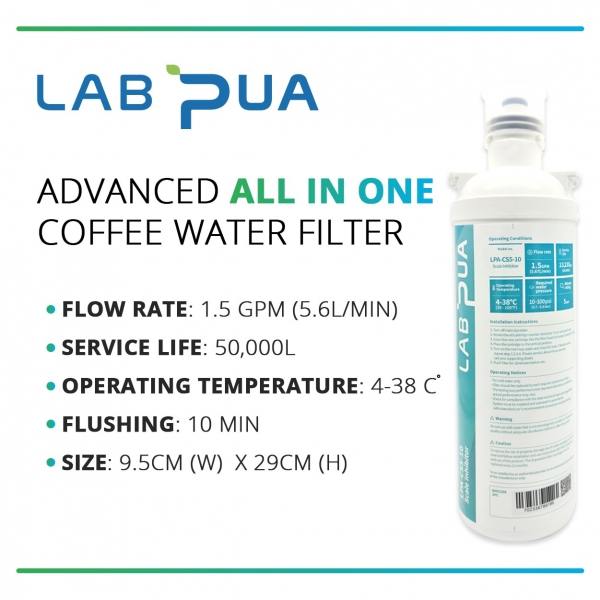

Specifications

• Model: LPA-CS5-10
• Rated Capacity: 50,000 litres / 13,210 gallons
• Service Flow Rate: up to 1.5 GPM / 5.67 LPM
• Operating Temperature: 4–38°C / 39–100°F
• Pressure Range: 10–100 psi / 0.7–6.9 bar
• Connection Size: 3/8"

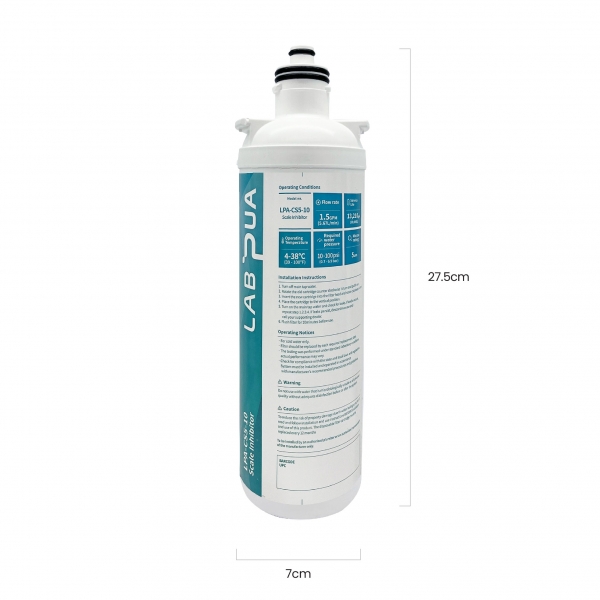

• Dimensions: 3.7" x 12.5"
• Cartridge Size: Ø3.3" x 10.7"
• Weight: approx. 1.1 kg

Installation Tips

• Install vertically with the cartridge hanging down
• Allow at least 2.5" clearance below the cartridge for replacement
• Use 3/8" water line where possible
• Do not use a saddle valve for connection
• Flush the cartridge for 5 minutes at full flow before use

Maintenance

For best performance, replace the cartridge every 6 months, when the rated capacity is reached, or when water pressure drops noticeably. Always flush the new cartridge at installation and after cartridge replacement.

Note: This is a compatible replacement cartridge and is not manufactured by Everpure.
