Germicidal UV Lamp Electronic Ballast Controller 40090 | 48W–85W | 4 Pin UV Lamp Power Supply

Short Description

Reliable electronic UV ballast controller designed for 48W to 85W 4-pin germicidal UV lamps. Features a built-in lamp life countdown display, lamp failure alarm, and automatic monitoring for dependable UV sterilisation performance. Compatible with a wide range of residential and commercial UV water purification systems.

Product Description

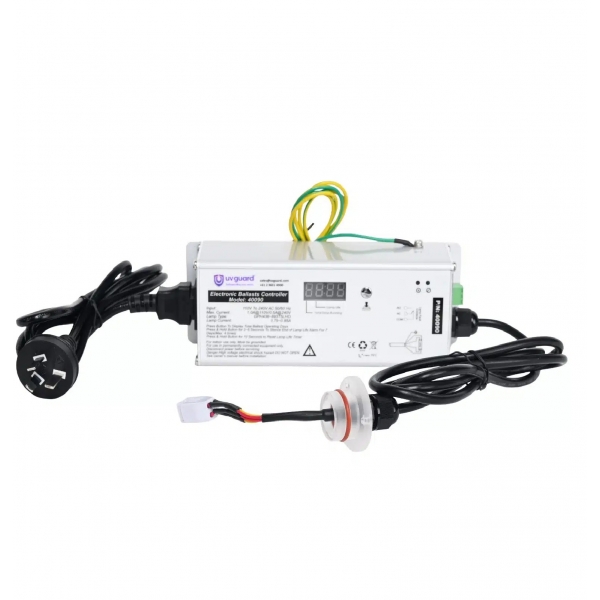

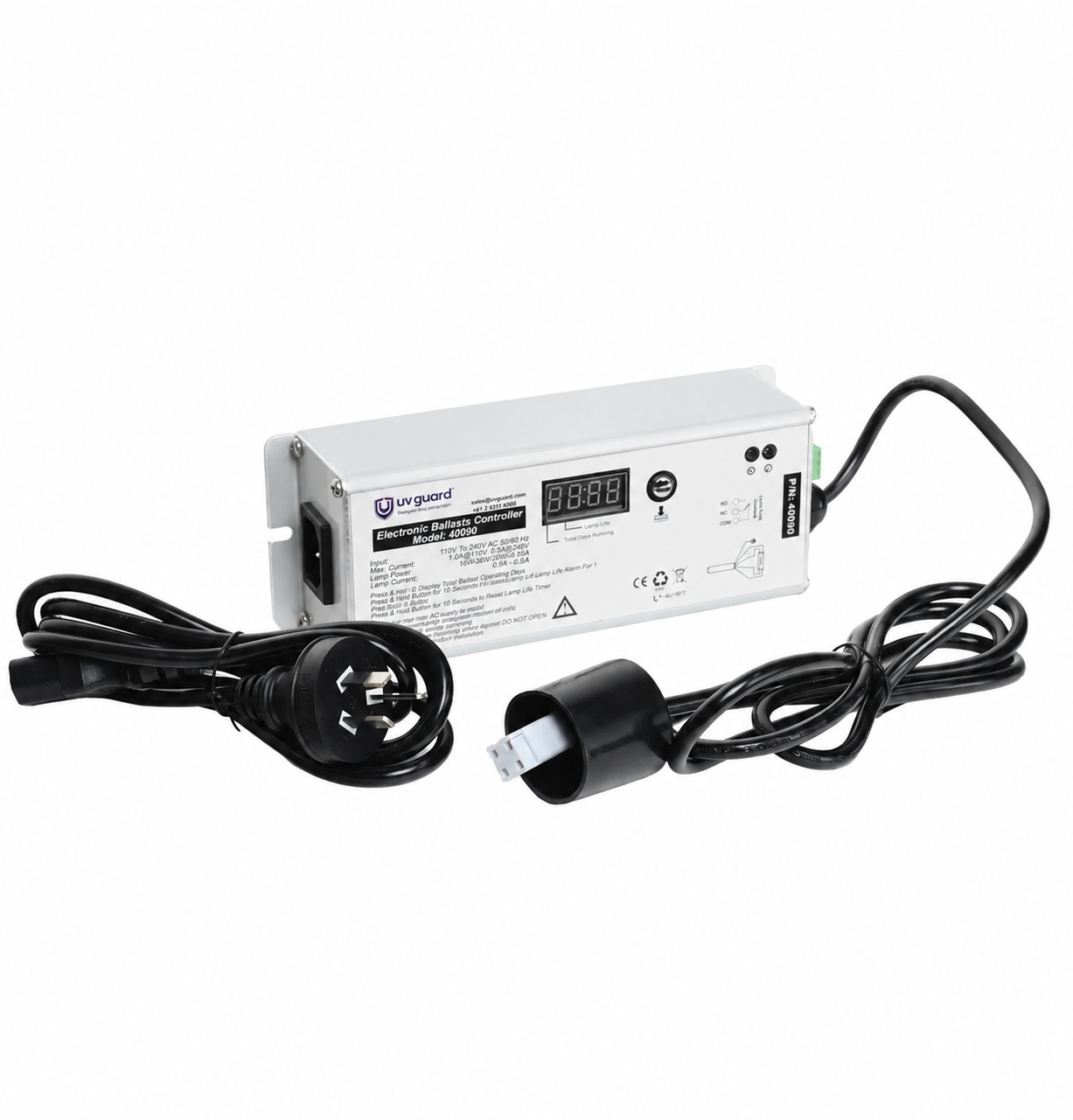

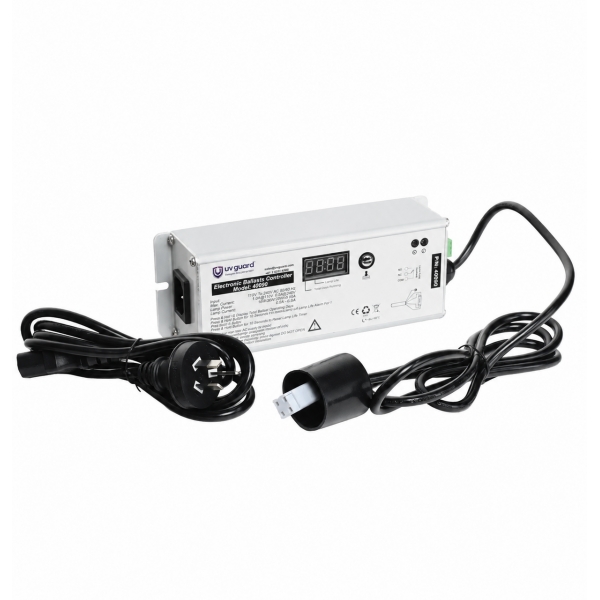

The 40090 Electronic UV Ballast Controller is a premium replacement power supply designed for 48W to 85W 4-pin germicidal UV lamps used in UV water sterilisation systems.

This electronic ballast provides stable power to your UV lamp while continuously monitoring lamp operation. The integrated digital display tracks the remaining lamp life, helping ensure your UV system continues to operate at maximum disinfection performance.

Suitable for many residential, commercial and industrial UV sterilisation systems, this ballast is supplied with a 240V Australian 3-pin power plug, standard 4-pin lamp connector, earth wire, and pre-wired leads for straightforward installation.

Key Features

• Suitable for 48W–85W 4-pin UV lamps
• Built-in digital lamp life countdown timer
• Lamp failure detection with audible alarm
• LED operating status indicators
• Heavy-duty electronic ballast for reliable operation
• Australian 240V power supply with 3-pin plug
• Pre-wired for easy replacement
• Compatible with numerous UV water steriliser systems
• Designed for continuous operation

Compatible Systems

Compatible with many UV sterilisation systems including:

• SLT75 UV Systems
• UV Guard Systems
• FSA UV Systems
• Puretec Hybrid G6
• Puretec Hybrid G7
• Systems using Beasun RH51-800-95L ballast

Also suitable for compatible UV lamps including:

• GPH436T5LHO
• GPH436-893T5LHO
• 11074
• Other compatible 48W–85W 4-pin UV lamps

Specifications

Model: 40090

Lamp Compatibility: 48W–85W 4-Pin Germicidal UV Lamps

Input Voltage: 240V AC

Power Plug: Australian 3-Pin Plug

Maximum Input Current: 0.5A @ 240V

Lamp Current: 0.75–0.85A

Base Dimensions:

• Length: 210mm
• Width: 75mm
• Height: 52mm

Includes:

• Electronic UV Ballast Controller
• 240V Power Lead
• 4-Pin Lamp Socket
• Earth Wire
• Pre-wired Lamp Cable

Lamp Life Monitoring

The ballast automatically monitors lamp operation and remaining service life.

When a new lamp is installed and the ballast is reset, the display begins counting down from 365 days.

The controller provides:

• Remaining lamp life display
• Green LED during normal operation
• Automatic lamp failure detection
• Audible warning when lamp replacement is required
• Visual alarm indicators

These functions help ensure the UV system continues operating effectively by reminding users when lamp replacement is recommended.

Installation Recommendation

For maximum protection, a surge protector should always be installed before the UV ballast.

In locations where power fluctuations or blackouts are common, installing an appropriate Uninterruptible Power Supply (UPS) is also recommended to help protect electronic components.

Important Notes

• Suitable for compatible 48W–85W 4-pin UV lamps only
• Please confirm compatibility with your existing ballast before ordering.
• Installation by a qualified technician is recommended.
• UV lamp not included unless otherwise specified.
