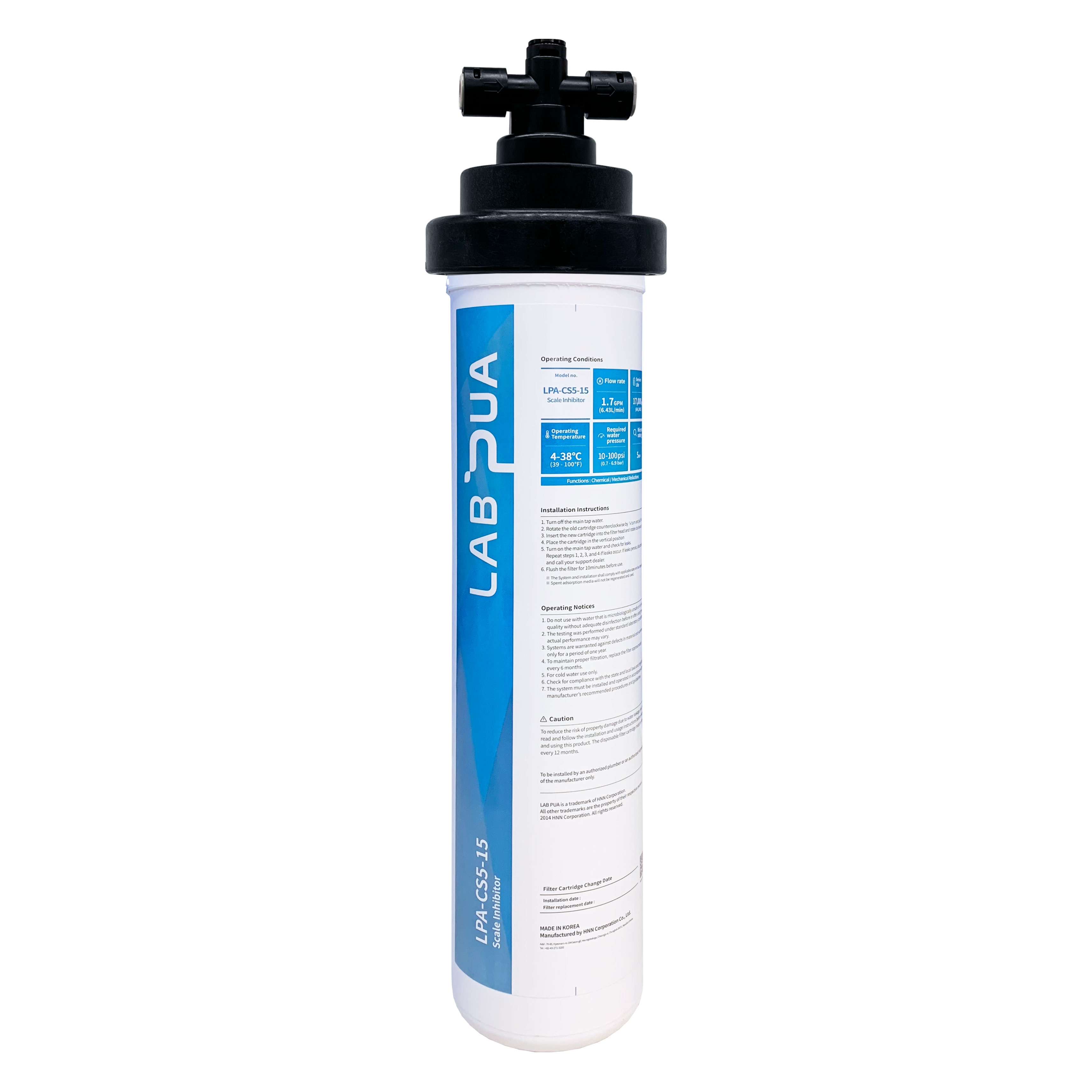

LAB PUA LPA-CS5-15 HIFLOW - FAST FLOW FILTER SYSTEM 1 MICRON 3 STAGE

KIT INCLUDES

1X FILTER 15 inch

1 X QUICK CONNECT HEADER ( Built in Stop valve)  3/8" Push in

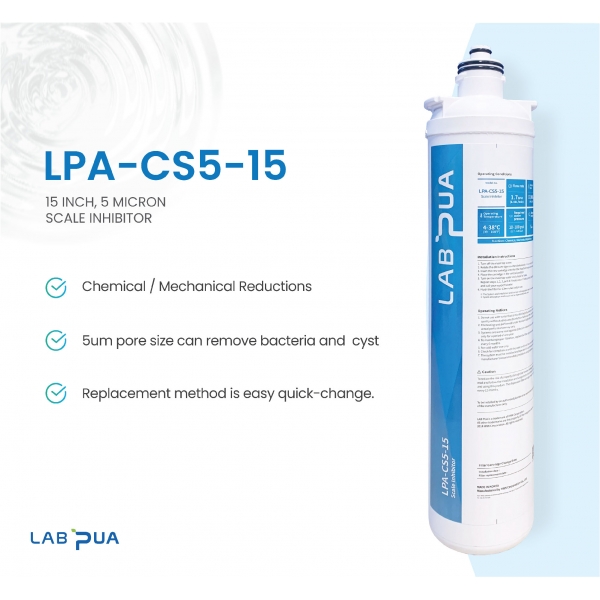

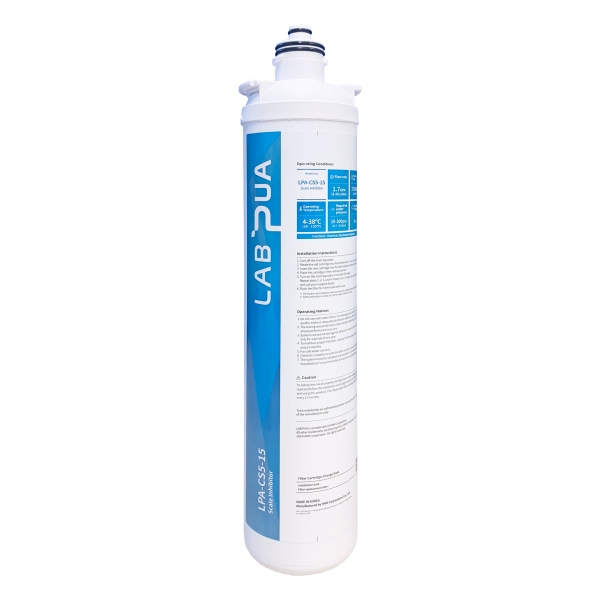

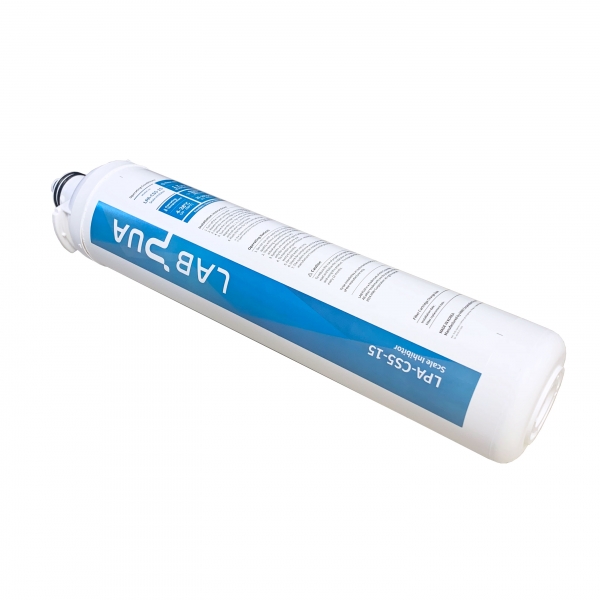

LPA-CS5-15 Water Filter Cartridge – Ice Maker & Appliance Use

Product Overview

The LPA-CS5-15 is a high-performance carbon block water filter cartridge designed to deliver clean, great-tasting water while protecting connected equipment from scale buildup. Ideal for ice makers, coffee machines, boilers, and water dispensers, this cartridge combines reliable filtration with long service life and easy maintenance.

Specifications

• Service Flow Rate: 1.7 GPM (6.43 L/min)

• Rated Capacity: 17,000 Gallons (64,345 Litres)

• Operating Temperature: 4–38°C (39–100°F)

• Operating Pressure: 10–100 psi (0.7–6.9 bar)

• Inlet / Outlet Connection: 3/8″

• Electrical Connection: Not required

Dimensions

• Overall: 3.7″ × 16.9″

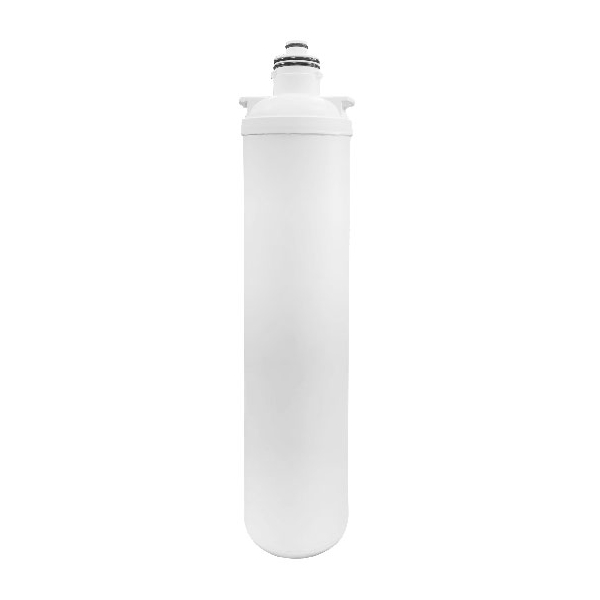

• Cartridge: Ø3.3″ × 15.7″

• Weight: 0.8 kg

Filtration Performance

Effectively reduces:

• Chlorine

• Unpleasant taste and odour

• Sediment and fine particulates

• Scale formation (via phosphate scale inhibitor)

Key Features & Benefits

• Phosphate scale inhibitor helps reduce scale buildup in boilers, heaters, and ice machines

• 5-micron CTO carbon block provides efficient particulate and chlorine reduction

• Extruded carbon technology ensures consistent filtration performance throughout cartridge life

• Pre-Shield Technology helps prevent premature clogging and extends cartridge lifespan

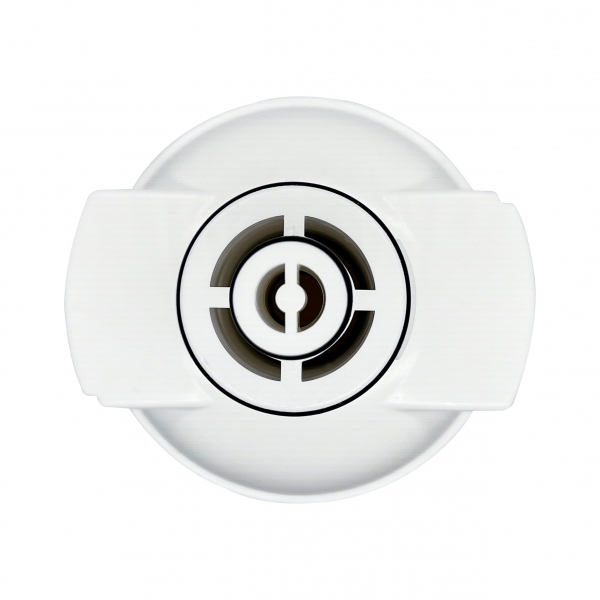

• Quick-change cartridge design for fast, tool-free replacement

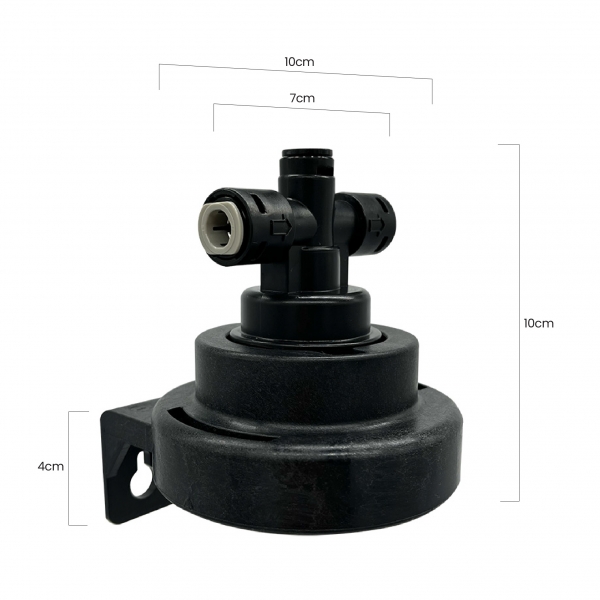

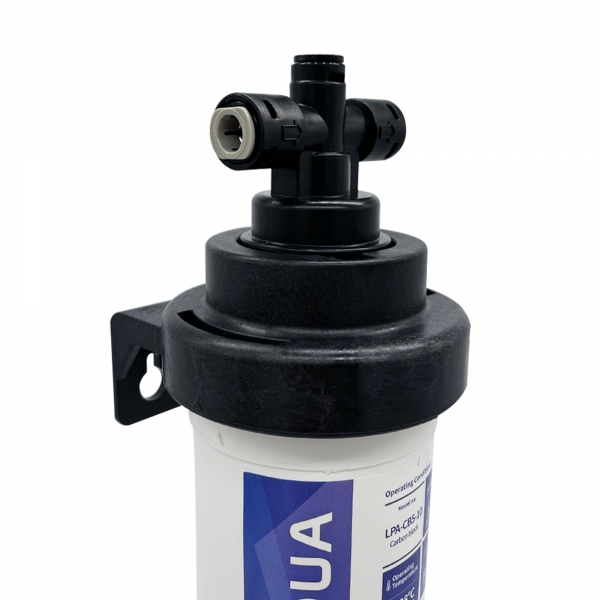

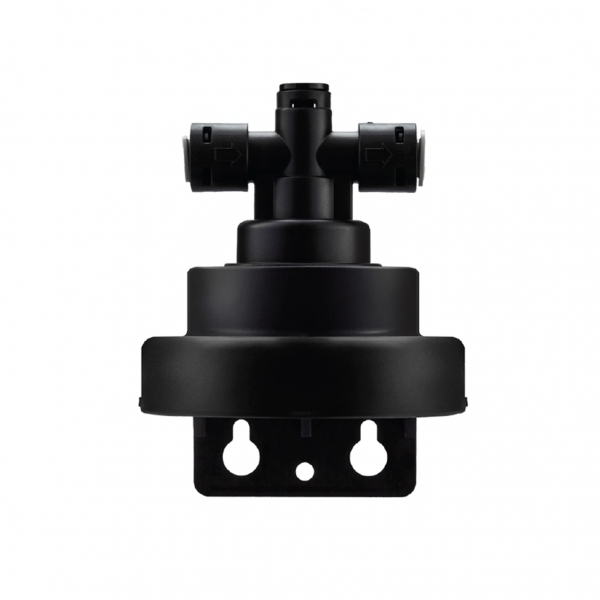

Single Head / Manifold Details

• Model: LPA138QC

• Dimensions: 95.2 × 126.0 × 109.8 mm (W × H × D)

• Connection Size: 3/8″

• Type: Quick-Change Single Head (Manifold)

• Features:

  • Built-in automatic water shut-off valve

  • Includes mounting bracket and 3/8″ fittings
