Everpure HIFLOW 4CB5-K Undersink Water system for House or Cafe

Everpure HIFLOW 4CB5-K Undersink Water system for House or Cafe

No need to look any further, this kit has it all! Plumb yourself in and start filtering water straight into your machine today

Delivers premium quality water for foodservice, vending and office coffee service (OCS) applications.
Carbon block filter finely polishes water for high quality beverage and food applications.

- Reduces chlorine taste and odor and other offensive contaminants that can adversly affect the taste of water and beverages
- Sanitary cartridge replacment is simple, quick and clean. Internal filter parts are never exposed to handling or contamination
- Reduces limescale buildup* that can cause excessive machine downtime and increased maintenance costs
- Carbon block filter finely polishes water for high quality beverage and food applications
- Reduces extra fine dirt and particles as small as five (5) microns in size by mechanical means*
- Lowers energy costs by reducing scale*
- Does not remove fluoride
- NSF Certified under NSF Standard 42
*As tested by Pentair Everpure

Applications
- Foodservice
- Vending
- Office coffee service (OCS)
- Ideal for problem water areas

Installation Tips
- Never use saddle valve for connection
- Use 3/8" water line
- Install vertically with cartridge hanging down
- Allow 2-1/2" (6.35 cm) clearance below the cartridge for easy cartridge replacement
- Flush 4CB5-S cartridge by running water through filter for five (5) minutes at full flow

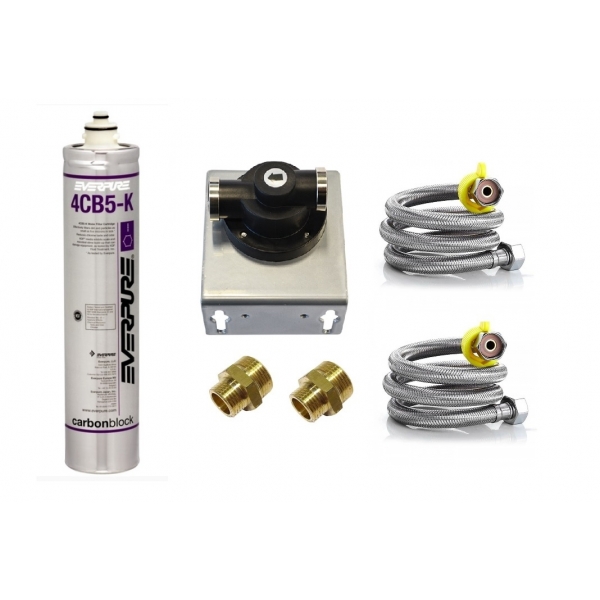

What's in the box?
- 1 x Everpure 4CB5-K Water Filter Cartridge (EV961736)
- 1 x QL1 filter head
- 2 x Water Hose Pipes Connect Undersink HIFLOW Tap Faucet 1/2"
- 2 x Brass Hex Reducing Nipple (3/8" x 1/2" Inch)

Operation Tips
- Change cartridges on a regular six (6) month preventative maintenance program
- Change cartridges when capacity is reached or when pressure falls below 10 psi (0.7 bar)
- Service flow rate must not exceed 1.67 gpm (6.3 Lpm)
- Always flush the filter cartridge at time of installation and cartridge change

Everpure 4CB5-K 5 Mic KDF Water Filter Cartridge EV9617-36 / EV961736

This Filter replaces PBS-400 PBS400 HIGH FLOW FILTER
Everpure 4CB5-K filter is commonly used with coffee & ice machines. It is highly effective at removing particles, chlorine, bad tastes, odours & dirt whilst also inhibiting scale development. Features KDF Media which inhibits microbial build-up.

Filter Replacement Instructions
1.Shut off the water supply.
2.Grasp existing filter and remove by rotating left until it stops and pull down releasing itfrom the filter head.
3.Align replacement filter guide channels with the corresponding posts of the filter head.
4.Insert the filter upward until it fully seats into the head, then rotate right until it stops.
5.Flush the system for 5 minutes before use.
Important: It is essential that operation, maintenance and filter replacement be carried out in accordance with manufacture's recommended procedures and guidelines for this product to perform as advertised. Failure to do so may void warranty

4CB5-K following Everpure filters and systems:

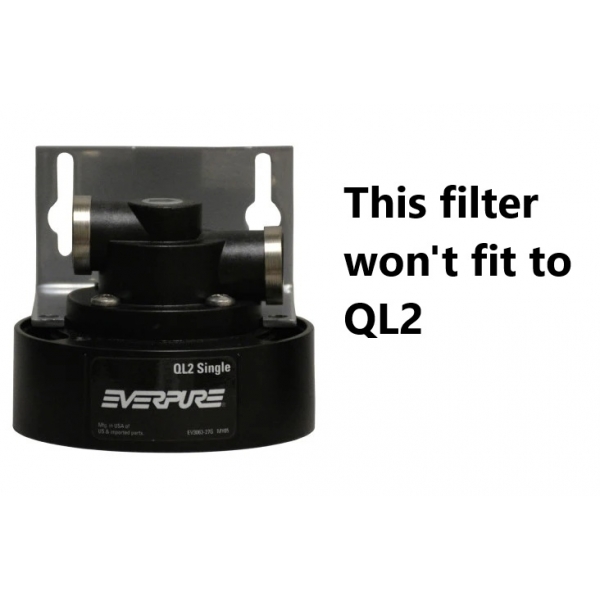

Everpure EV9259-14 QL3 Single Head, Everpure EV9272-18 QL2 Single Head without Fittings, and the Everpure EV9275-60 QL2-OCS Coffee Filter System


Operating Specifications are as Follows:(HIFLOW OR HI-FLOW)
- Flow Rate: Maximum 1.67 gpm (6.3 Lpm)
- Rated Capacity: 6,000 gallons (22,712 L)
- Operating Temperature: 35 - 100°F (2 - 38°C)
- Operating Pressure: 10 - 125 psi (0.7 - 8.6 bar), non-shock
- Reduces: Sediment, Taste & Odour, Chlorine & Limescale
- Weight: 1.2 kg
- Micron Rating: 5
- Estimated capacity: 22,000 litres
- Maximum flow rate: 6.3 litres per minute
- Dimensions: height: 370mm / diameter: 83mm

Everpure QL1 Water Filter Head
Everpure Part Number EV3098-53E suits a Range of Everpure Filters
The Everpure QL1 single filter head & bracket assembly.
The Everpure QL1 EV3098-53E filter head features a 3/8 inch female threaded inlet and outlet ports.
EV925618 will replace Everpure EV9259-24, QL3 EV9259-14, EV925924
Dimensions 112mm deep including bracket x 83mm wide
MADE IN USA

2 x Water Hose Pipes Connect Bathroom Heater Toilet Monobloc Tap Faucet 1/2"

Water Hose Pipes Tails Connect Bathroom Heater Toilet Monobloc Tap Faucet
Package: 2 x Water Hose 50cm

About Items:
- Material: 304 stainless steel nuts and cover, EPDM Rubber inner pipe
- Applicable temperature: -15℃~90℃
- Nominal pressure:.0~1.6 Mpa
- G1/2 Standard Pipe
- Size(see picture details please)
- Mounting: Screw Type
​- Color: Silver
- Applies to: Water Heater,Washing Machine Connector ,Toilet Connector,Monobloc Tap etc

2 x Brass 3/8″ x 1/2″ Bsp Reducing Nipple

Measures 25mm & 20mm across threads
