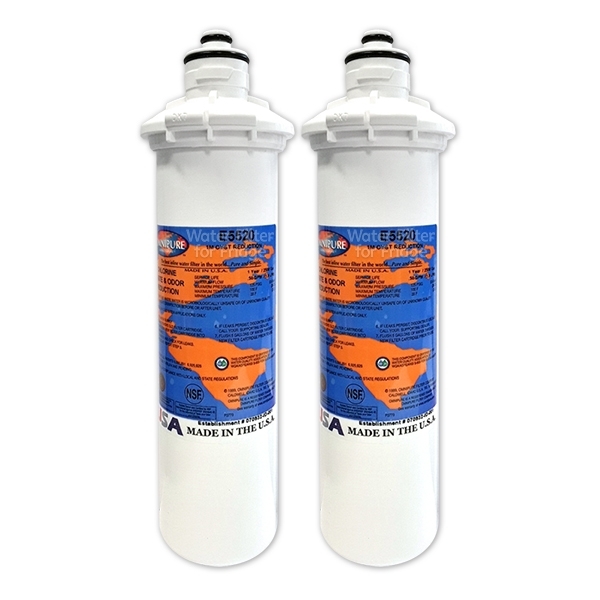

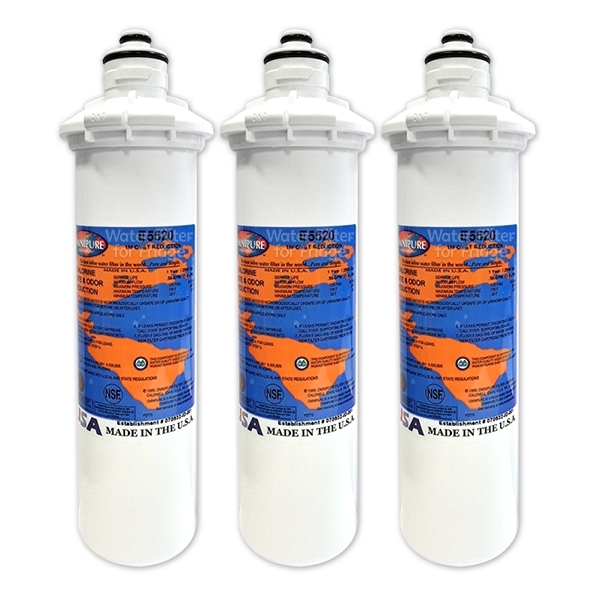

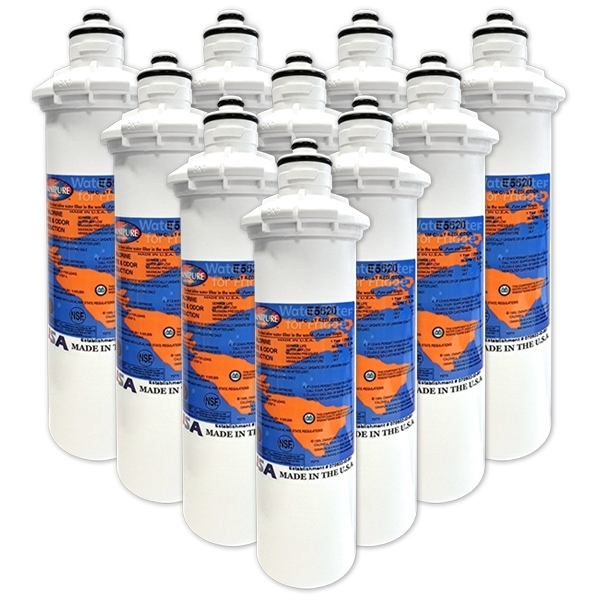

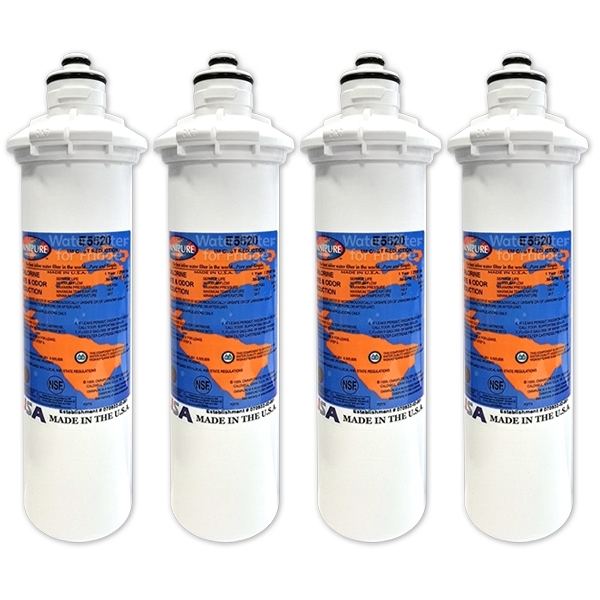

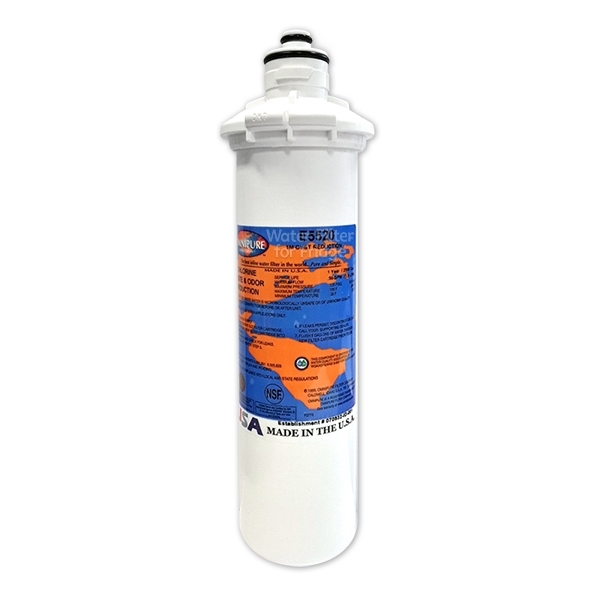

Omnipure E-Series Inline Water Filter E5520/ E5520-SB 2.5 X 10" 1 micron carbon block
The E-Series was designed for our customers that are already using other existing permanent heads in the market place but would like an affordable alternative to the replacement bodies currently offered. E-series cartridges are also available with Omnipure's proprietary heads. Replacement cartridges are offered in 2.5" diameter and 6", 8", 10", 12"and 14" lengths. Sizes shown include 10” length only.
General Installation / Operation / Maintenance Requirements
-Note flow direction of filter.
-Flush new cartridge with 5 gallons of water prior to use and check for leaks. If leaks occur, check tightness of tubing and fittings. If leaks persist, discontinue use and call your supporting dealer.
-Replace cartridge when rated capacity (2,500 gallons) is reached, or when flow becomes too slow.
-Install in compliance with state and local laws and regulations.
Special Notices
-The contaminants or other substances removed or reduced by this water treatment system are not necessarily in your water.
-Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
Important Notice
Read this Performance Data Sheet and compare the capabilities of this unit with your actual water treatment needs.
It is recommended that, before purchasing a water filter unit, you have your water supply tested to determine your actual water treatment needs.
| Lab Results | ||||||
|---|---|---|---|---|---|---|
| Parameter | USEPA MCL | Influent Challenge | Effluent Average | Effluent Maximum | Percent Reduction Average | Percent Reduction Minimum |
| Chlorine | - | 2.22 ppm | <0.1 | <0.1 | >99 | 90 |
| Cyst | 99.95% Reduction | 104,457 Particles | < 1 | < 1 | 99.99% | - |
This filtration block is tested and Certified by NSF International under ANSI/NSF Standard 42 for the reduction of chlorine, taste, and odor and Standard 53 for the reduction of cysts.
Additional Information
E-Series replacement bodies are offered in 6 in, 8 in, 10 in, 12 in and 14 in lengths. Bodies are tested to withstand pressure of 125 psi and temperature of 100 ºF. Media service life is designed to handle up to 3,000 gallons in some models and filtration micron ratings are as low as 1 micron in other models.
Water filter heads sold separately.
Part# E5520
Alternate Part
• E5520-SB E5520 SB
• E5515-SB E5515 SB
• S54 H-54
• EV9252-66 EV9720-06 S-54
• WFA 12 WFA-12
• WFA PRO1500-RC EV9302-12
• EV9592-01 ADC-6 EV9592-06
• EV959201 EV9252-67
• EV959-206
The Omnipure E5520 fits all the Everpure heads except the Pro Series and replaces the E5515-SB The E5520 SB Filters suit the QL1, QL2, QL3 and QL3B Everpure style Filter Heads.
E5520 SB filter will replace the following Everpure filters and systems E5515-SB, S54, H-54, EV9252-66, S-54, EV9720-06, WFA 12, WFA-6, WFA Pro1500-RC, EV9302-12, RV, ADC, EV9592-01, ADC-6, EV9252-67,EV9592-06, AC, EV959201, EV9252-67, ADC, EV959-206, Hydrotwist WFA12, Full timer used in RV, Caravans, Under kitchen sink filters etc.
The Omnipure E5520-SB filter cartridge will remove Dirt, Rust, Sediment Particles, Chemicals, Chlorine and will also give you protection from Cyst.
Specifications
| Flow Rate | 0.5 gpm |
| Maximum Operating Pressure | 125 psig |
| Operating Temperature | 2 to 38 ºc(35 to 100 ºF) |
| Rated Capacity | 2,500 gal/1 Year |
| Reduction Claim | Cyst, chlorine, taste, color, odor and VOC reduction |
| Flow Capacity | 2,500 gal |
| Filter Head Type | Non-Valved Valved |
