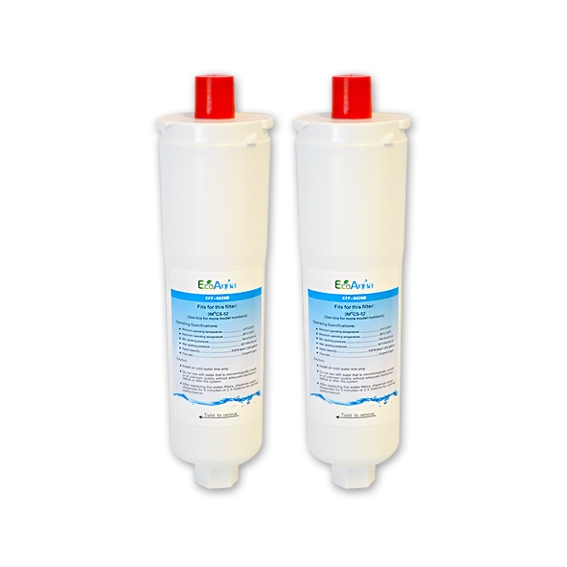

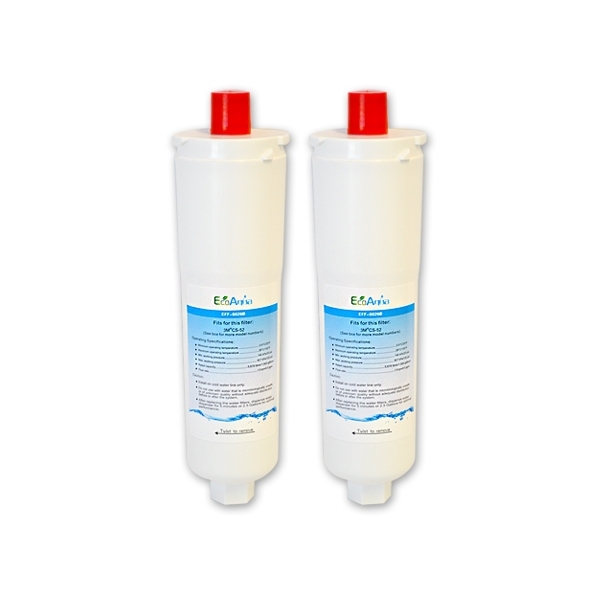

ECO AQUA EFF-6026B

The replacement filter for 3M BOSCH CS-52, Zip 51000, & Zip 52000 water filters.

  Installation Instructions:

Disconnect the refrigerator water supply and unplug the refrigerator

Push the button at the top of the filter case and remove the case from the compartment

Twist the old filter a quarter-turn counterclockwise

Pull the filter straight out and discard

Remove the protective cap from the new filter

Push the new filter into the fridge until it stops

Twist the new filter a quarter-turn clockwise

Replace the filter case back into the compartment

Reconnect the refrigerator water supply and plug the refrigerator back in

When to change a filter: There is a replacement indicator light for the water filter cartridge on the dispenser. The filter cartridge should be replaced when the filter light comes on, or every 6 months, or if you notice a decrease in flow of water.

Important: It is essential that operation, maintenance and filter replacement be carried out in accordance with manufacture's recommended procedures and guidelines for this product to perform as advertised. Failure to do so may void warranty

View Installation Guide : Please CLICK here

The EFF-6026B is compatible with the following:
CS-52, 1257074, 55866-05, 55866-06, 5586605
5586606, 56932, 640565, 70020002518, AP3961137
B20CS5, B20CS8, CS-450, CS-451, CS-452
CS-51, CS450, CS451, CS452, CS51
CS52, EVOLFLTR10, W1085590, WHCF-R-PLUS, WHCFRPLUS
WHKF-R-PLUS, WHKFRPLUS, WHKF-R-PLUS, WHKFRPLUS

Bosch filter number EVOLFLTR-10

KAN58A40AU

It is also compatible with Zip 51000, 52000

Important: Some manufacturers use the same fridge model number for fridges supplied with both internal and external filter systems, please make sure that your fridge uses an Internal water filter before ordering this item.

Filter Life: 6 months or 1500 gallons (whichever comes first)

Flow Rate: 0.5 gallons per minute

Operating Pressure: 25 - 125 psi

Operating Temperature: 40 - 100 degrees Fahrenheit

Micron Rating: 5 microns

Actual Size: 8 1/4 inches (length) x 2 1/2 inches (diameter)

Bosch Part Number: CS-52

UPC: 016145068805


Tested and certified by NSF International against ANSI / NSF Standard 42 for the reduction of 86.00% of ChlorineSediment
The CS-52 does not remove fluoride

IF YOU ARE NOT 100% SATISFIED WITH YOUR PURCHASE WE OFFER A FULL REFUND OR REPLACEMENT.
