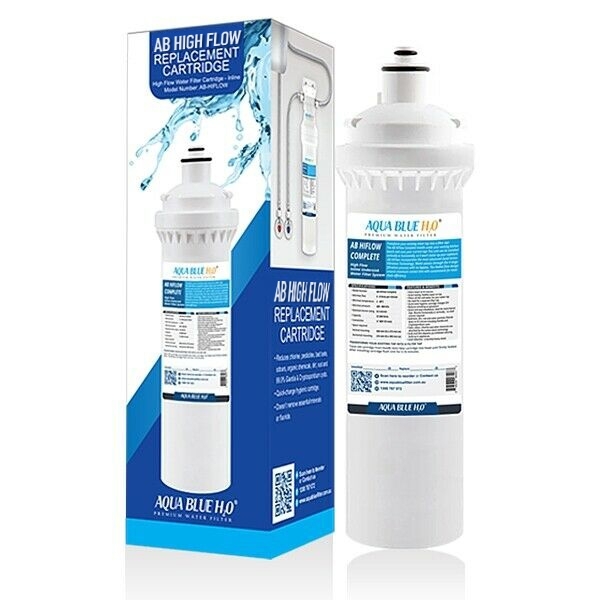

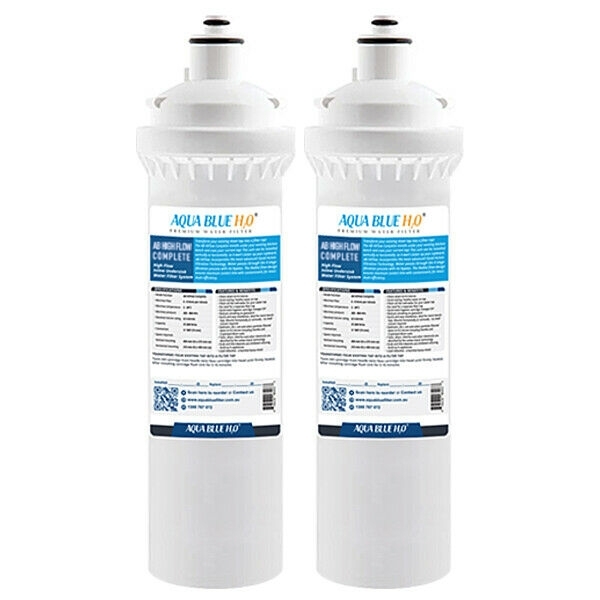

ABHC Aqua Blue H20 High Flow Inline

4 Stage Undersink Water Filter

The ™AB High Flow Complete under your existing kitchen bench and uses your current tap!
This unit can be installed vertically or horizontally, so it won’t clutter up your cupboard.

AB High Flow Complete incorporates the most advanced Quad Action Filtration Technology.
Water passes through the 4 stage filtration process with no bypass.
The Radial flow design ensures maximum contact time with contaminants for maximum efficiency.

Aqua Blue H2O AB High Flow Complete

4-Stage High-Flow Inline Under-Sink Water Filter System

Enjoy clean, fresh-tasting filtered water directly from your existing kitchen mixer tap.

The Aqua Blue H2O AB High Flow Complete is a high-flow under-sink filtration system designed to filter the cold-water supply to your existing kitchen tap. There is no need to drill an additional hole or install a separate drinking-water faucet.

Its compact design allows the system to be mounted either vertically or horizontally, making it ideal for kitchens with limited cupboard space, including kitchens with stone benchtops.

Key Benefits

• Filters the cold-water supply to your existing kitchen tap

• No separate drinking-water faucet required

• High flow rate of up to 8 litres per minute

• Four-stage filtration in one convenient cartridge

• Filters particles down to a nominal 0.5 micron

• Helps reduce sediment, dirt, rust and fine particles

• Helps reduce chlorine taste and odour

• Helps reduce lead and selected chemical contaminants

• Helps reduce cysts, subject to applicable testing and operating conditions

• Contains scale-inhibiting media to help reduce lime and mineral build-up

• Helps reduce streaking and mineral deposits on glassware

• Quick-twist hygienic cartridge replacement

• Can be mounted vertically or horizontally

• Suitable for residential kitchens, offices, cafés and similar applications

• Large filtration capacity of up to 37,500 litres, depending on water quality and usage

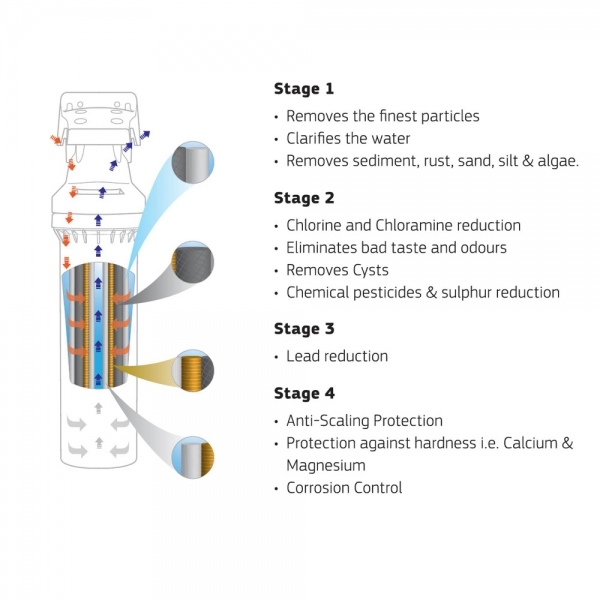

Four-Stage Filtration Technology

The AB High Flow Complete cartridge uses a radial-flow design to provide effective contact between the water and filtration media.

Water passes through all four filtration stages without bypassing the filtration media.

Stage 1 – Fine Sediment Filtration

Helps reduce:

• Sediment

• Dirt

• Rust

• Sand

• Silt

• Algae

• Fine suspended particles

The nominal 0.5-micron filtration helps clarify the water and protect the carbon filtration media.

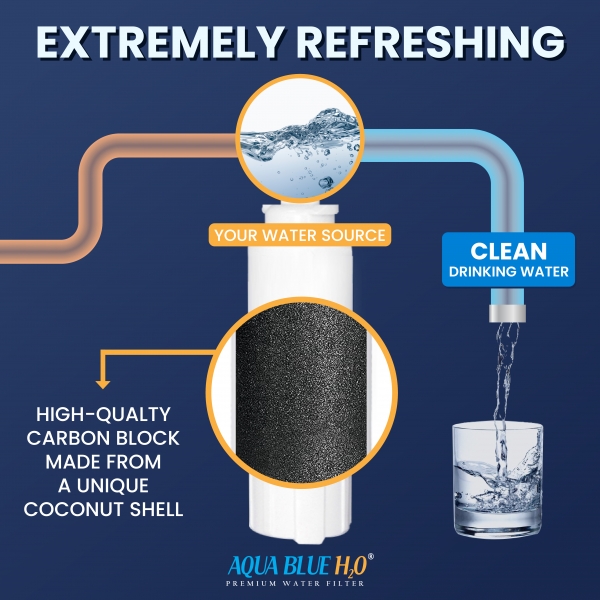

Stage 2 – Carbon Block Filtration

Helps reduce:

• Chlorine taste and odour

• Unpleasant tastes and smells

• Selected organic chemicals

• Selected pesticides

• Sulphur-related odours

• Cysts, where supported by applicable product testing

The carbon block media improves the taste, smell and overall quality of drinking water.

Stage 3 – Heavy-Metal Reduction

Designed to help reduce lead and selected heavy-metal contaminants, subject to water chemistry, flow rate, operating conditions and applicable product testing.

Stage 4 – Scale-Inhibiting Protection

The cartridge contains phosphate-based scale-inhibiting media designed to help control mineral scale.

This stage may help:

• Inhibit calcium and magnesium scale build-up

• Reduce lime deposits

• Reduce mineral spotting on glassware

• Protect taps, kettles and connected appliances

• Assist with corrosion control

Please note that scale-inhibiting media helps control scale formation. It does not soften the water or completely remove dissolved calcium and magnesium.

High-Flow Filtration Through Your Existing Tap

Unlike low-flow drinking-water systems that require a separate small faucet, the AB High Flow Complete is designed to filter the cold-water supply connected to your existing kitchen mixer.

This provides convenient filtered water for:

• Drinking

• Cooking

• Washing fruit and vegetables

• Filling kettles

• Preparing tea and coffee

• General cold-water kitchen use

The system filters the cold-water line only. Hot water must not pass through the cartridge.

Flexible Installation

The compact system can be mounted:

• Vertically

• Horizontally

• Under a kitchen sink

• Inside a cupboard

• Against the side or rear cupboard wall

Horizontal installation is particularly useful where cupboard height is limited or where shelving prevents vertical installation.

Professional installation by a licensed plumber is recommended. Installation requirements may vary depending on the existing plumbing arrangement.

Product Specifications

Model: AB-HIGHFLOW
Filtration stages: 4 stages
Maximum flow rate: Up to 8 litres per minute
Operating temperature: 2°C to 38°C
Operating pressure: 200 to 860 kPa
Nominal micron rating: 0.5 micron
Maximum rated capacity: Up to 37,500 litres
Connection size: ½-inch BSP / 15 mm

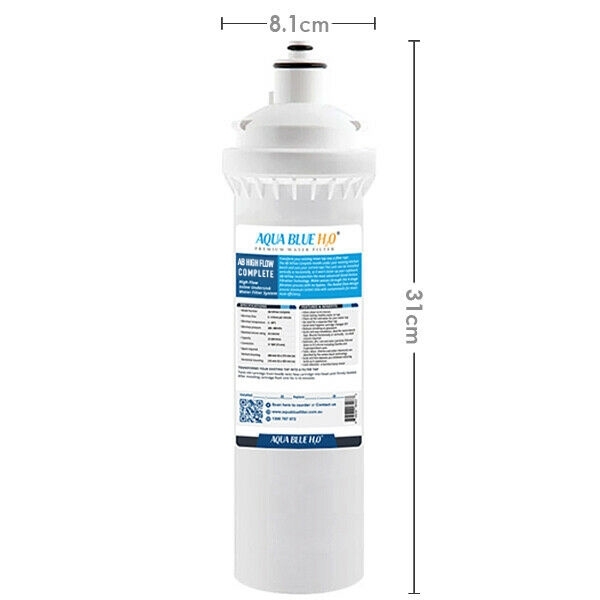

Installation Space Required

Vertical installation:
450 mm high × 215 mm wide

Horizontal installation:
215 mm high × 450 mm wide

Actual space requirements may vary depending on fittings, hoses and access required for cartridge replacement.

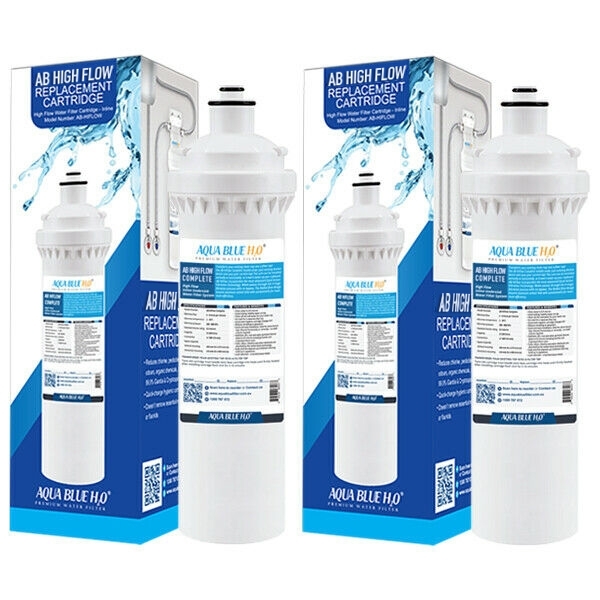

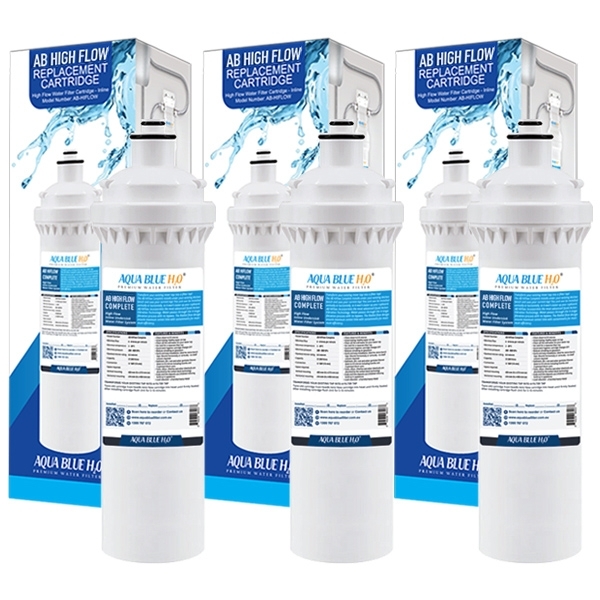

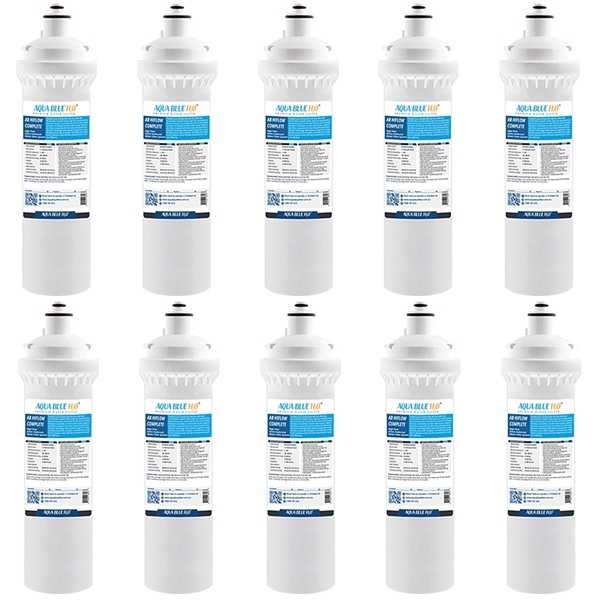

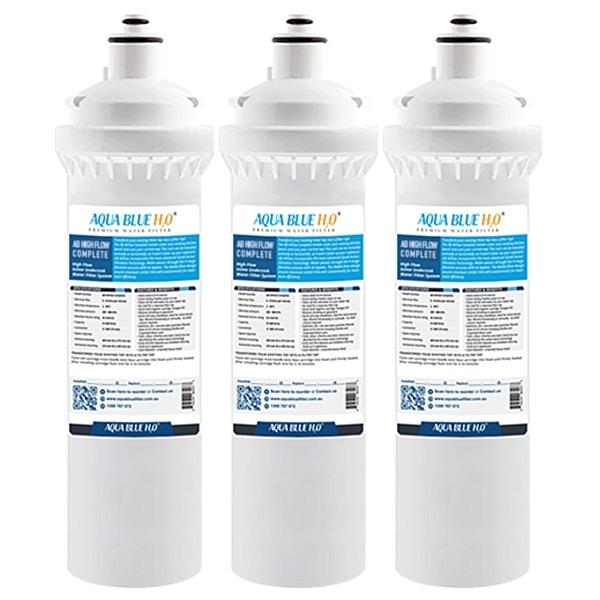

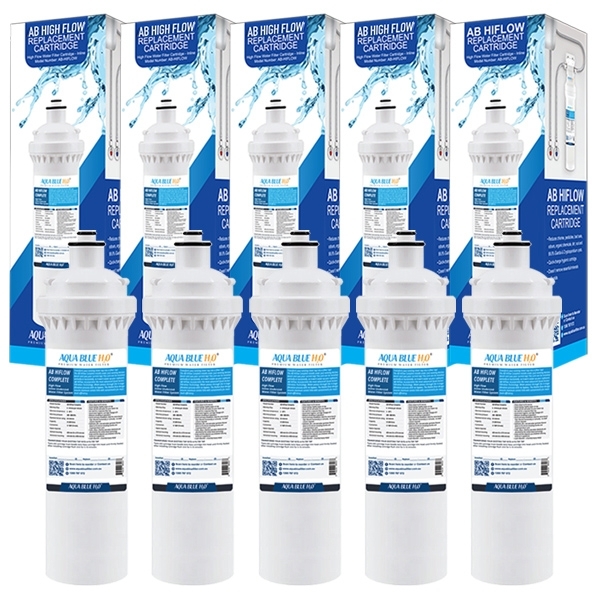

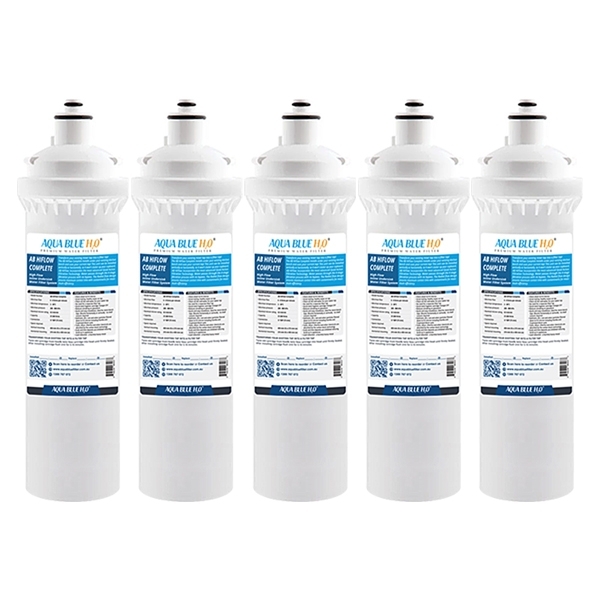

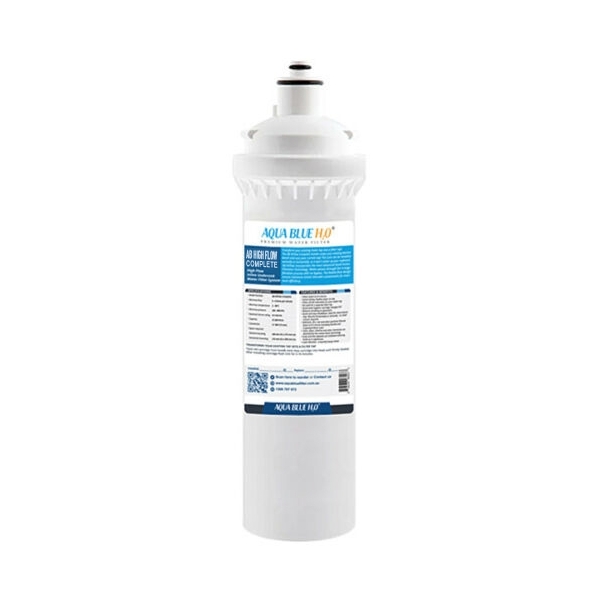

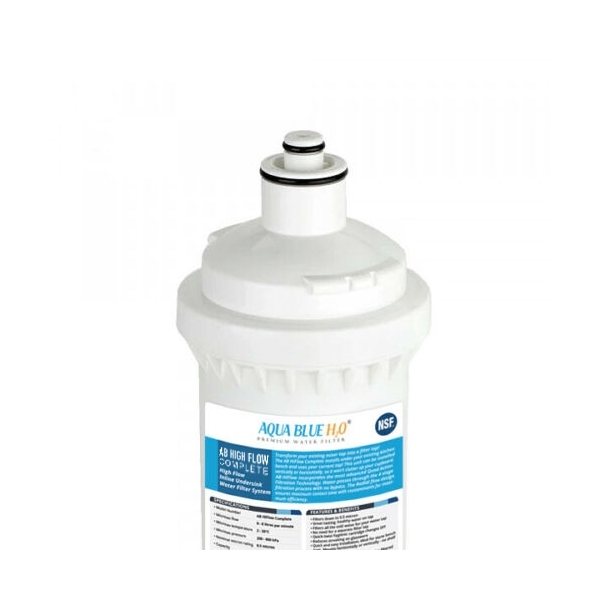

Cartridge Replacement

The quick-twist cartridge design allows the replacement cartridge to be removed and installed without directly handling the internal filtration media.

Replace the cartridge:

• When the recommended capacity has been reached

• When the water flow noticeably decreases

• When taste or odour returns

• At the manufacturer’s recommended replacement interval

• Earlier where incoming water contains high levels of sediment or contaminants

Actual cartridge life depends on water quality, water pressure, flow rate and daily consumption.

Turn off the water supply and release the pressure before replacing the cartridge.

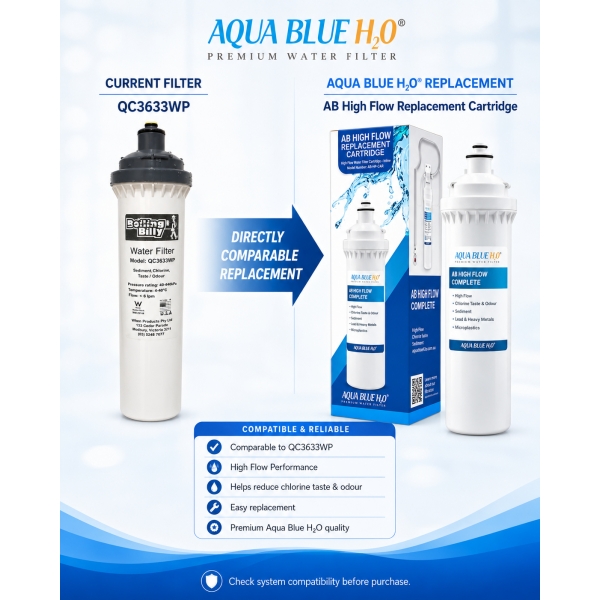

Compatible and Suitable Replacement References

This system or cartridge may be suitable as a replacement for selected high-flow inline filtration systems and cartridge references, including:

• Puretec FR5910

• Puretec FR5950

• Puretec FS5010

• Oliveri HiFlow Inline systems

• Oliveri FWXM1PH

Compatibility must be confirmed using the existing system model, cartridge dimensions, head connection, plumbing configuration and installation requirements before ordering.

Brand names and part numbers are used for compatibility identification purposes only. Aqua Blue H2O is not claiming manufacture, endorsement or affiliation with Puretec or Oliveri unless expressly stated.

Performance Information

Depending on the exact cartridge configuration, testing standard and operating conditions, high-flow carbon filtration technology may assist with the reduction of:

• Chlorine taste and odour

• Class I particulates

• Lead

• Mercury

• Cysts

• Carbofuran

• p-Dichlorobenzene

• Asbestos

• Benzene

• Turbidity

Any specific contaminant-reduction percentages should only be relied upon where they are supported by a current test report or certification that specifically identifies the AB-HIGHFLOW system or installed cartridge.

Performance can vary according to incoming water quality, pH, pressure, temperature, flow rate and cartridge condition.

This product is not intended to make microbiologically unsafe or unknown-quality water safe without appropriate disinfection before or after the system.

Important Information

• For cold-water applications only

• Do not connect to a hot-water line

• Do not install where water pressure exceeds the stated maximum

• A pressure-limiting valve may be required

• Flush the cartridge thoroughly before first use

• Check all fittings for leaks after installation

• Protect the system from freezing

• Installation must comply with applicable plumbing requirements

• Replace the cartridge at the recommended interval

• Confirm compatibility before purchasing

Why Choose the AB High Flow Complete?

The AB High Flow Complete provides a practical filtration solution for customers who want filtered water through their existing kitchen tap without installing an additional faucet.

Its combination of high-flow filtration, fine sediment reduction, carbon block technology, lead-reduction media and scale-inhibiting protection makes it suitable for a wide range of residential and light-commercial applications.
