Replacement Kits for Fridge Filter & Ice Maker Water Filters

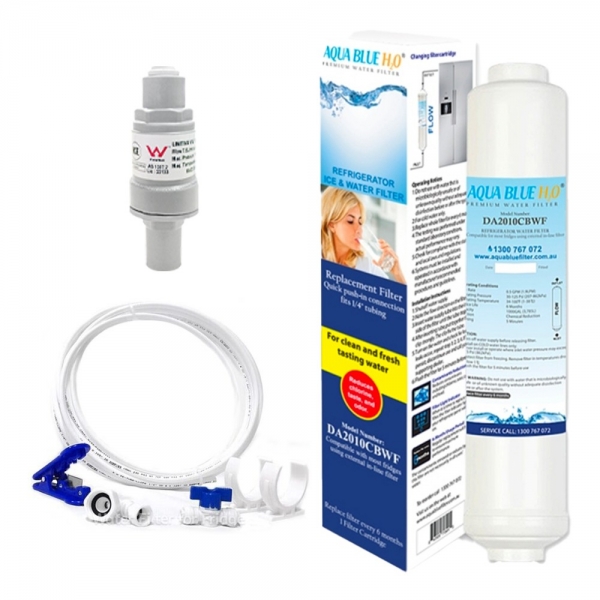

THIS KIT SET PACKING INCLUDES:
- 1X EXTERNAL WATER FILTER DA2010CB
- NYLON TUBE CUTTER FOR MAXIMUM TUBE OUTER DIAMETER 15MM
- 1X 1/4" 10 METRE HOSE
- 2X INLINE FILTER BRACKET
- 1X 1/4" FEMALE CONNECTOR TO 1/4" PUSH IN(BACK OF FRIDGE CONNECTION)
- 1X 3/4"-1/4" BSP SPEED FIT CONNECTION
- 1X 1/2"-1/4" BSP SPEED FIT CONNECTION
- 1X 1/4"-1/4" SPEED BALL VALVE
- PLV350 - Pressure Limiting Valve

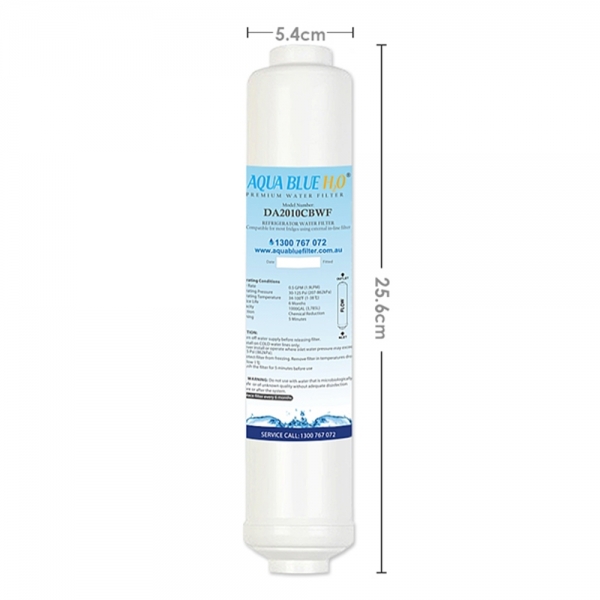

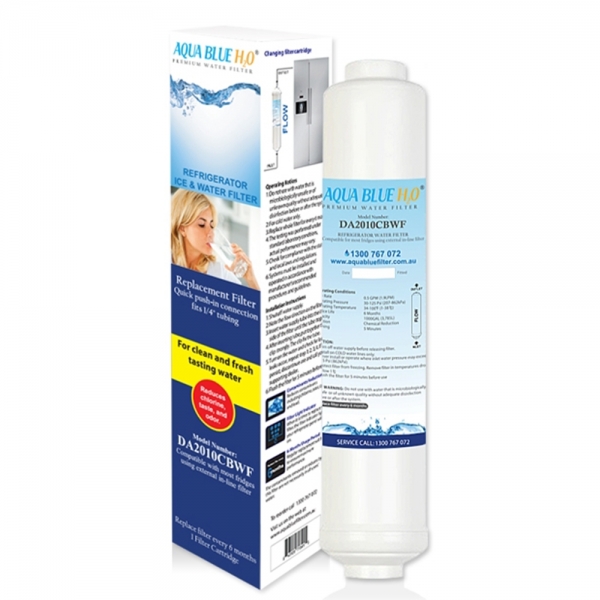

DA2010CB Filter Description

Suitable for:

External compatible water filters with 1/4" pushfit connections include pressure limit valve

You are buying Superior Quality compatible filters with push-fit connections.

The Aqua Blue H2O DA2010CB Water Filter replaces:

3010541600, 3019974100, 3650JD8050A, 3890JC2990A, 497818, 5231JA2010B, 5231JA2012A, BL-9808, C00114417, DA29-10105J, DD-7098, EF-9603, GXRTDR, GXRTQ, GXRTQR, HAFEX-EXP, Magic Water Filter, WSF-100, 5231JA2010A, External

The Aqua Blue H2O DA2010CB Fridge Filter For SAMSUNG Fridges Replace Or is Compatible With The Following Filter Part Numbers
Samsung magic water filter : WSF-100, EF-9603LG AND HOTPOINT :BL9808, 3890JC2990A

DAEWOO : DD7098GE SMART WATER FILTERS :GXRTQ

WHIRLPOOL : 4378411

WESTINGHOUSE : 1450970 and any other external inline filter

BOSCH : KAN58A70AU, KAN58A70SS

As with all built-in refrigerator waterfilters, the Aqua Blue H2O DA2010CB does not remove Fluoride.

Note: The filter provides cleaner, fresher water & ice.

Important: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. The contaminants or other substances removed or reduced by the water filter device are not necessarily in your water

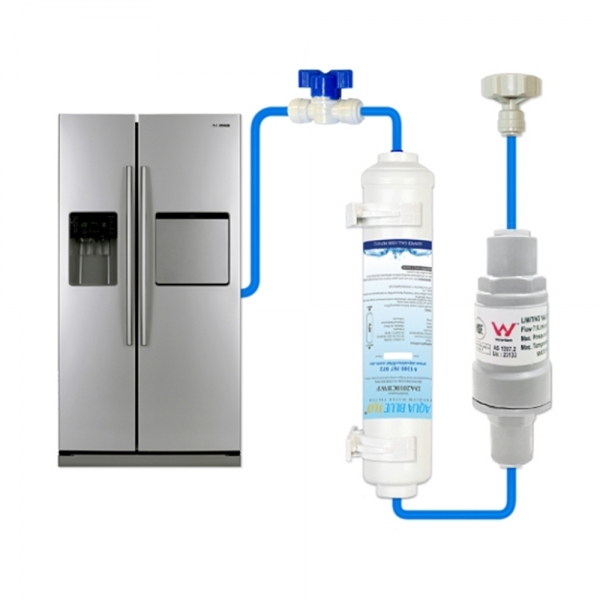

Installation and replacement procedure for the Aqua Blue H2O DA2010CB fridge water filter:

1. Find isolation valve which will be located somewhere on the water supply line to the fridge. Turn it off and to depressurise the system draw a large glass of water from the water outlet at the fridge.

2. . Have a bucket and towel ready as there will be a small spillage of water during this process. Remove the old filter by depressing the locking collar at each end of the filter with your thumb nail (or similar) and at the same time pull out the water supply line. Discard the old filter.

3. Take the new filter, making sure the flow direction is correct and insert the inlet side only, the line will go in approx 5 – 10mm and you will feel it hit home.

4. IMPORTANT - Placing the filter in the bucket, turn on the water supply and allow about 5 litres of water to flow through the filter and into the bucket. This will remov e any loose carbon fines. Turn off the water supply and connect the line that feeds into the fridge. Turn on the water supply and run approx 2 litres through the system.

5. Complete the Replacement Due sticker and place in a visible area inside the fridge door.

NOTE: The green light changes to orange after five months to indicate that you should soon change the water filter. It changes to red after an additional one month (6 months after the water filter was changed or installed) to indicate that you must change the water filter. If the water filter indicator lights up red, press the ICE TIMER and ICE MODE buttons at the same time for about three seconds to reset the water filter indication light from red to green.

The Aqua Blue H2O DA2010CB Water Filters Operating Specifications are as Follows:

Filter cartridge should be replaced at least every 6 months

Water Filter Reduces the Following Health Related Contaminants:
97.60% of Chlorine Taste and Odour
98.40% of Particulates (Class I)
96.60% of Mercury at pH 6.5
88.90% of Mercury at pH 8.5
99.30% of Lead at pH 6.5
99.40% of Lead at pH 8.5
99.99% of Cysts
98.70% of Carbofuran
99.80% of p-Dichlorobenzene
99.00% of Asbestos
96.40% of Benzene
98.60% of Turbidity

Hose Tube Kit Description

Contains the following items which can be used to easily connect your American Style Fridge Freezer to your mains water feed. Comes complete with 1/4" water pipe and connectors as listed below:

- American Fridge Freezers

- Samsung (ALL EXTERNAL FRIDGE FILTERS)

- LG

- BOSCH

- DAEWOO

- GE

- Fisher & Paykel

- Wirlpool

- Westing House

This Kit Set Include :
1. 5 Metres of 1/4" LDPE TUBE

2. 1 x 3/4" Female pipe connector to 1/4" pushfit

3. 1 x 1/4" to 1/4" equal Pushfit Elbow (to connect two lengths of 1/4" pipe together)

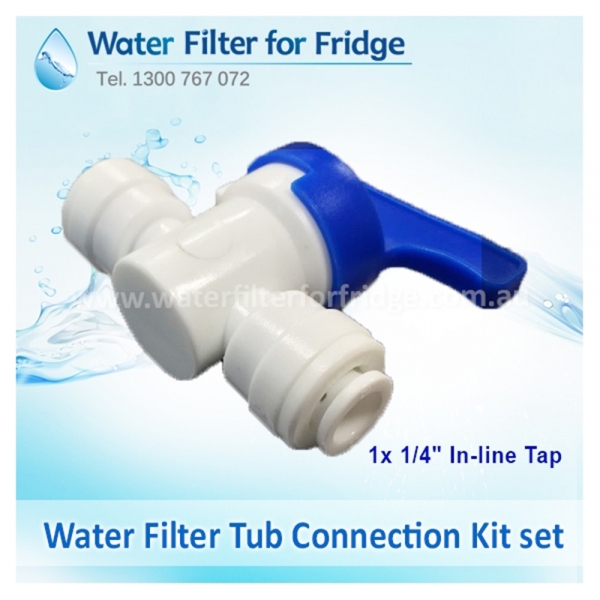

4. 1 x 1/4" Inline Tap (connect to 1/4" pipe and control water flow on or off)





PLV350 Description

Features/Benefits

- High quality pressure limiting valves being applicated for high pressure system to protect downstream components-Water filters.Drink dispensers RO system.
- Protect water filteration devices by limiting water pressure and reducing water hammer.
- Different pressure ratio setting for options to suit different application.
- Quick fitting connector for easy to install onto your application.

Watermark Certified

350kpa water pressure reducing valve
- High quality materials
- Light weight
- Easy installation

Pressure Limiting Valve 350Kpa 50psi Filter Protection Valve
- Pressure Reduction Valve with 1/4" Quick Connect Push Fit In and Out Suitable for High pressure systems to protect drink dispensers e.g. Water filters, ice makers, coffee machines and reverse osmosis machines. Prevent water hammer and back flow.
- Australian/New Zealand Watermark Approved Highly recommended when installing water filter systems.
- Integral Check Valve
- Resists water hammer.
- Stops backflow.

Product Description
Pressure Reduction Valve with 1/4" Quick Connect Push Fit In and Out Suitable for High pressure systems to protect drink dispensers e.g. Water filters, ice makers, coffee machines and reverse osmosis machines. Prevent water hammer and back flow.

PLV350 Specifications
