This listing is for external compatible
water filters with 1/4" pushfit connections.
DISPATCH IN 24 HOURS
DA2010CB Filter Description >>
Suitable for: External compatible water
filters with 1/4" pushfit connections You are buying Superior Quality
compatible filters with push-fit connections.
The Aqua Blue H2O DA2010CB Water Filter replaces:
5231JA2010B, 5231JA2012A, BL-9808, 5231JA2010A, External Filters
The Aqua Blue H2O DA2010CB
Fridge Filter For LG Fridges Replace Or is Compatible With The Following Filter
Part Numbers
- LG : BL9808, 3890JC2990A, GCP197DPSL
Tested and Certified by NSF International against NSF/ANSI Standards
42 for the reduction of Chlorine Taste and Odour. As with all built-in refrigerator
water filters, the Aqua Blue H2O DA2010CB does not remove Fluoride.
Note: The filter provides cleaner, fresher water & ice.
Important: Do not use with water that is microbiologically
unsafe or of unknown quality without adequate disinfection before or after the system.
The contaminants or other substances removed or reduced by the water filter device
are not necessarily in your water
Installation and replacement procedure for the Aqua Blue H2O DA2010CB fridge water
filter:
1. Find isolation valve which will be located somewhere on the
water supply line to the fridge. Turn it off and to depressurise the system draw
a large glass of water from the water outlet at the fridge.
2. . Have a bucket and towel
ready as there will be a small spillage of water during this process. Remove the
old filter by depressing the locking collar at each end of the filter with your
thumb nail (or similar) and at the same time pull out the water supply line. Discard
the old filter.
3. Take the new filter, making sure the flow direction
is correct and insert the inlet side only, the line will go in approx 5 – 10mm and
you will feel it hit home.
4. IMPORTANT - Placing
the filter in the bucket, turn on the water supply and allow about 5 litres of water
to flow through the filter and into the bucket. This will remov e any loose carbon
fines. Turn off the water supply and connect the line that feeds into the fridge.
Turn on the water supply and run approx 2 litres through the system.
5. Complete the Replacement Due sticker and place in a
visible area inside the fridge door.
NOTE: The green light changes to
orange after five months to indicate that you should soon change the water filter.
It changes to red after an additional one month (6 months after the water filter
was changed or installed) to indicate that you must change the water filter. If
the water filter indicator lights up red, press the ICE TIMER and ICE MODE buttons
at the same time for about three seconds to reset the water filter indication light
from red to green.
Important: It is essential that operation, maintenance
and filter replacement be carried out in accordance with manufacture's recommended
procedures and guidelines for this product to perform as advertised. Failure to
do so may void warranty
IF YOU ARE NOT 100% SATISFIED WITH YOUR PURCHASE WE OFFER A FULL REFUND OR REPLACEMENT.
The Aqua Blue H2O DA2010CB
Water Filters Operating Specifications are as Follows:
Flow Rate
1.9 lpm
Operating Temperature
min 1°C / max 38°C
Operating Pressure
min 172 kPa (25 psi) / max 689.4 kPa (100 psi)
Technology
High quality Carbon Block
Function
Chemical and Mechanical Reduction
Capacity
3,000 litres
Service Life
6 months
Dimensions approximately
5 cm x 25.5 cm
Important: Do not use with water that is microbiologically
unsafe or of unknown quality without adequate disinfection before or after the system.

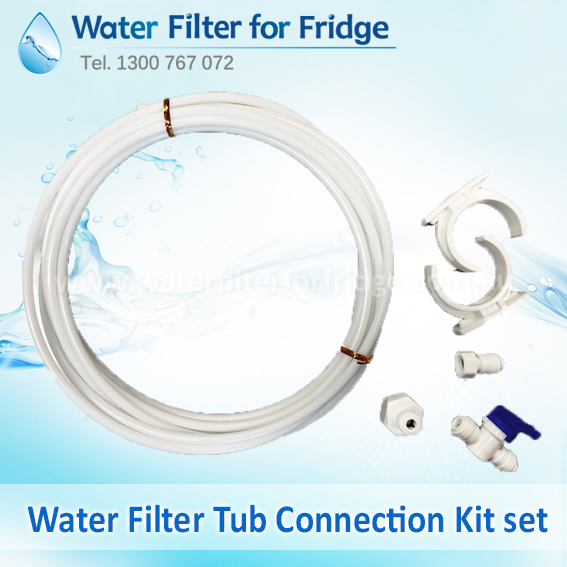

Hose Tube Kit Description>>
Contains the following items which can be used to easily connect your American Style Fridge Freezer to your mains water feed. Comes complete with 1/4" water pipe and connectors as listed below :
- American Fridge Freezers
- Samsung (ALL EXTERNAL FRIDGE FILTERS)
- LG
- BOSCH
- DAEWOO
- GE
- Fisher & Paykel
- Wirlpool
- Westing House
PAY INSTANTLY WITH YOUR DEBIT OR CREDIT CARD THROUGH PAYPAL.
This Kit Set Include :
- 5 Metres of 1/4" LDPE TUBE
- 1 x 3/4" Female pipe connector to 1/4" pushfit
- 1 x 1/4" to 1/4" equal Pushfit Elbow (to connect two lengths of 1/4" pipe together)
- 1 x 1/4" Inline Tap (connect to 1/4" pipe and control water flow on or off)
